Description And Operation: Operation

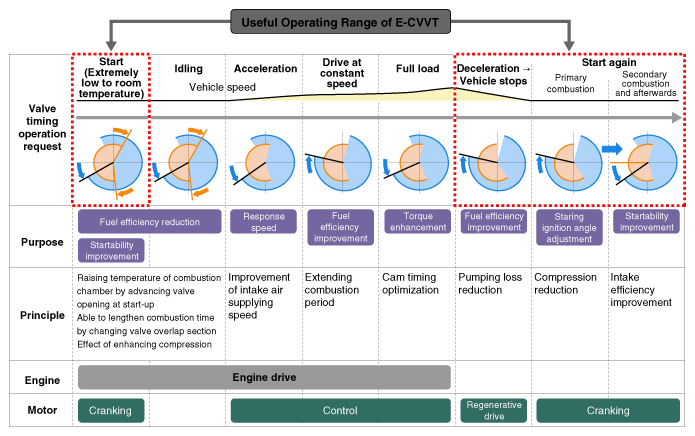

Fig 1: E-CVVT System Operation Chart
G12055479Courtesy of HYUNDAI MOTOR AMERICA
