Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L › Input Shaft Speed Sensor 1 › Components And Components Location › Components

Components And Components Location: Components

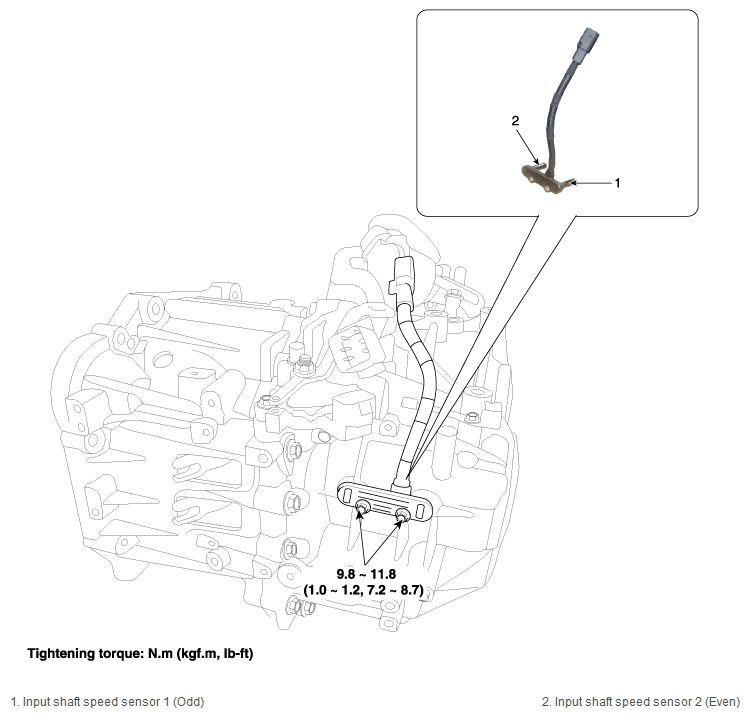

Fig 1: Input Shaft Speed Sensor 1 Components With Torque Specification
G12039612Courtesy of HYUNDAI MOTOR AMERICA
