Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.

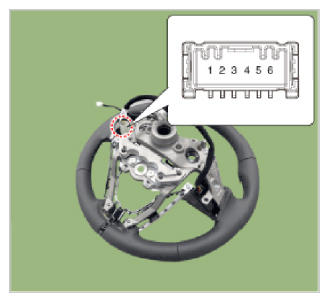

- Disconnect the cruise control switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Switch Connector terminal Resistance (± 5%) CANCEL 2 - 6 390Ω SET - 2 - 6 610Ω RES + 2 - 6 910Ω CRUISE 2 - 6 1.38 kΩ
