Smart Cruise Control (SCC) Radar Alignment

WARNING: This page is about a different variant/trim than selected.

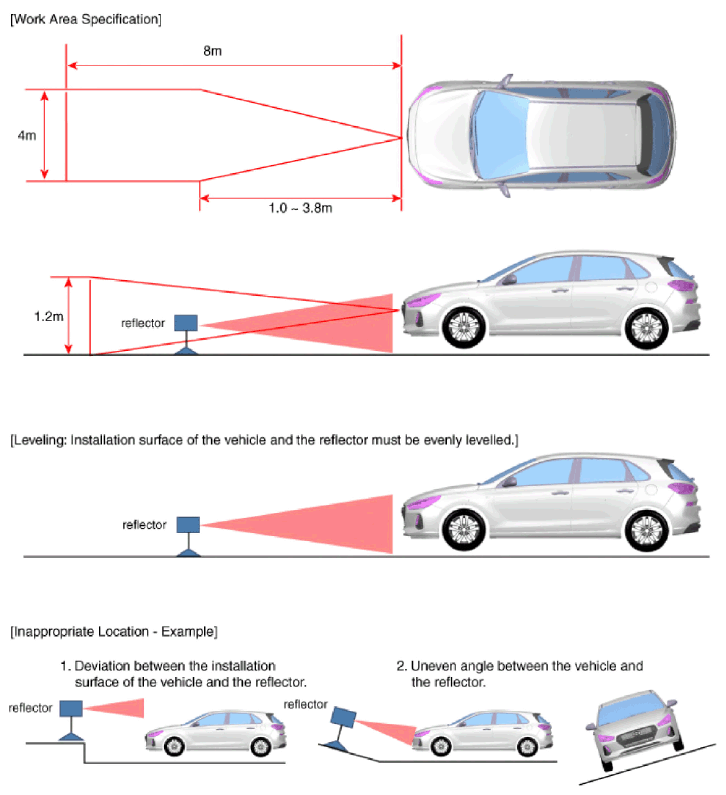

  1. Stop the vehicle horizontally at a flat place.
    NOTE:
    • Adjustment may not be accurate if the installation surface height and angle of the vehicle and reflector are different.
    • Perform in an area with minimum clearance of 8m front, 4m sides, and 1.2m above the vehicle.
    • Remove heavy objects from inside of the vehicle (seating area and trunk).
    • Ensure that all tires are filled with spec air pressure.
    • Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where sensor alignment is performed.
    • Be sure that the vehicle is not moved and free from vibration when performing sensor alignment (getting in/out or opening/closing doors).
    • Check that radiator grill and sensor cover is not dirty.
    • Check that the wheel alignment is normal.
    • Do not turn OFF the power when performing sensor alignment.
    • Power supplied to the radar sensor must be between 9V-16V.
    • Temperature in the area where sensor alignment is performed must be between -30-60°C.
    G13015464Courtesy of HYUNDAI MOTOR AMERICA

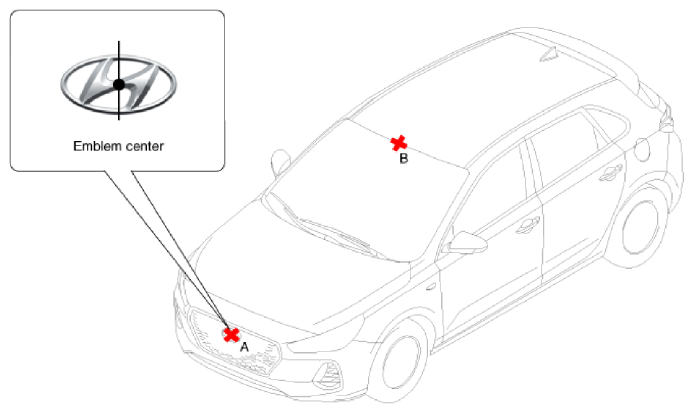

  2. Mark the center point of emblem (A) and the center point on top of wind glass (B).
    G13015465Courtesy of HYUNDAI MOTOR AMERICA
  3. Connect the SCC Calibration Laser (SST No.: 09964-C1200) to the Tri-Pod (SST No.: 09964-C1300).
    G13015466Courtesy of HYUNDAI MOTOR AMERICA

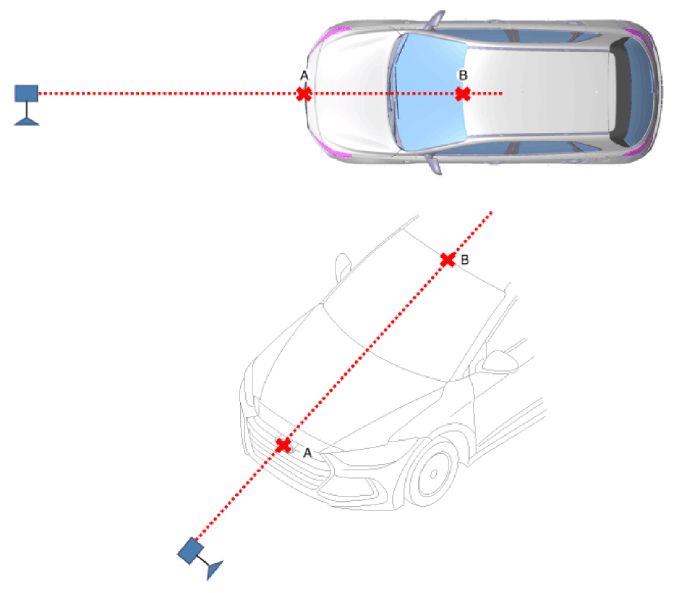

  4. Match the vertical line of laser to (A) and (B) using the SCC calibration laser pointer.
    G13015467Courtesy of HYUNDAI MOTOR AMERICA

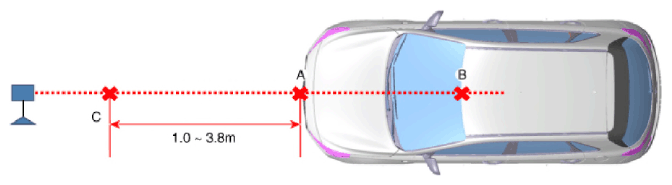

  5. Mark (C) located in 1.0 - 3.8 m from (A) in front of the vehicle.
    G13015468Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the SCC Calibration Laser (SST No.: 09964-C1200) from the Tri-Pod (SST No.: 09964-C1300).
  7. Connect the reflector (SST No.: 09964-C1100) to the tripod (SST No.: 09964-C1300) and set the reflector center height to 583 mm.
    G13015469Courtesy of HYUNDAI MOTOR AMERICA
  8. Set the reflector horizontal using the leveler which is built in the tripod (SST No.: 09964-C1300).
    G13015470Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Balance the level so that the bubble in the level is set between the spec lines.
  9. Check again the radar sensor and the surface of front bumper for the following items with the eyes.
    NOTE:
    • Make sure that there is no debris, or reflecting object on the surface of the radar.
    • Make sure that there is no debris, or reflecting object on the radiator grill.
  10. Connect the GDS to the DLC of the vehicle and start sensor alignment.
    NOTE:
    • If the engine is running, the vibration may cause inaccurate sensor alignment, so perform sensor alignment in IG ON mode.

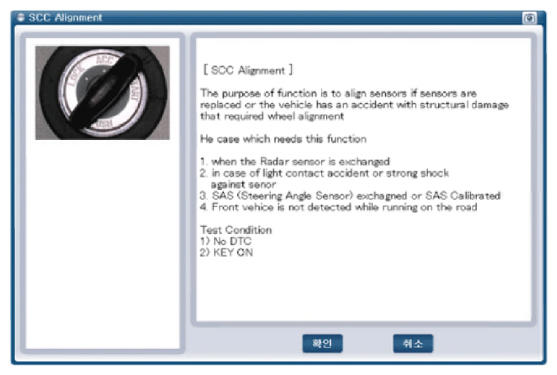

  11. After correctly selecting the vehicle model, select "SCC Alignment" from the auxiliary functions in GDS Menu.
    G13015471Courtesy of HYUNDAI MOTOR AMERICA

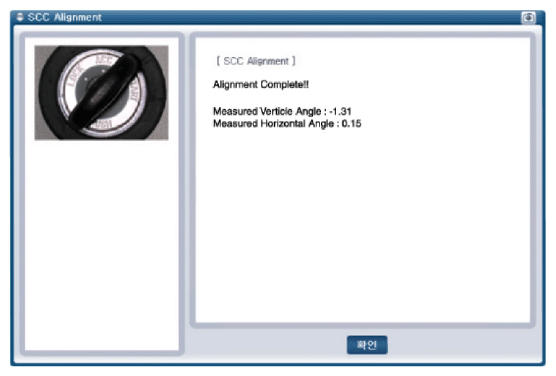

  12. Perform sensor alignment by following the directions shown in the GDS monitor.
    G13015472Courtesy of HYUNDAI MOTOR AMERICA
  13. In case of sensor alignment failure, check the alignment conditions. Turn the ignition key OFF, then reperform the sensor alignment procedure.
