Components & Components Location: Components

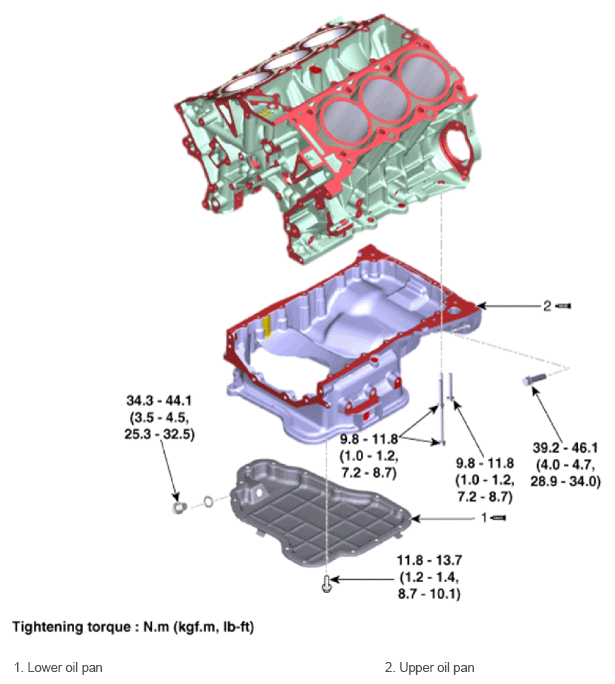

Fig 1: Oil Pan Components Location With Torque Specifications
G14423476Courtesy of HYUNDAI MOTOR AMERICA
