Components And Components Location: Components

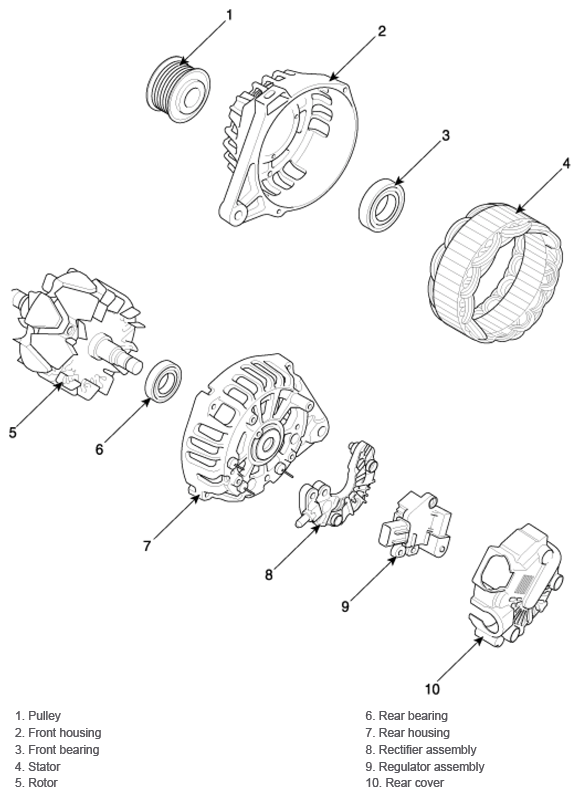

Fig 1: Alternator Assembly Exploded View
G13016962Courtesy of HYUNDAI MOTOR AMERICA
