Components And Components Location: Components

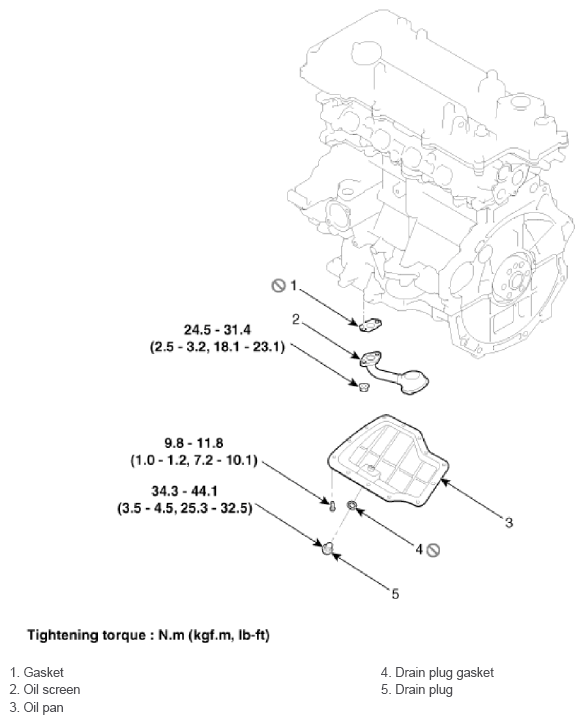

Fig 1: Oil Pan Components With Torque Specification
G13052205Courtesy of HYUNDAI MOTOR AMERICA
