Home › Hyundai › 2022 › Kona SE, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › IVT Control System - 2.0L › Shift Lever › Components & Components Location › Components

Components & Components Location: Components

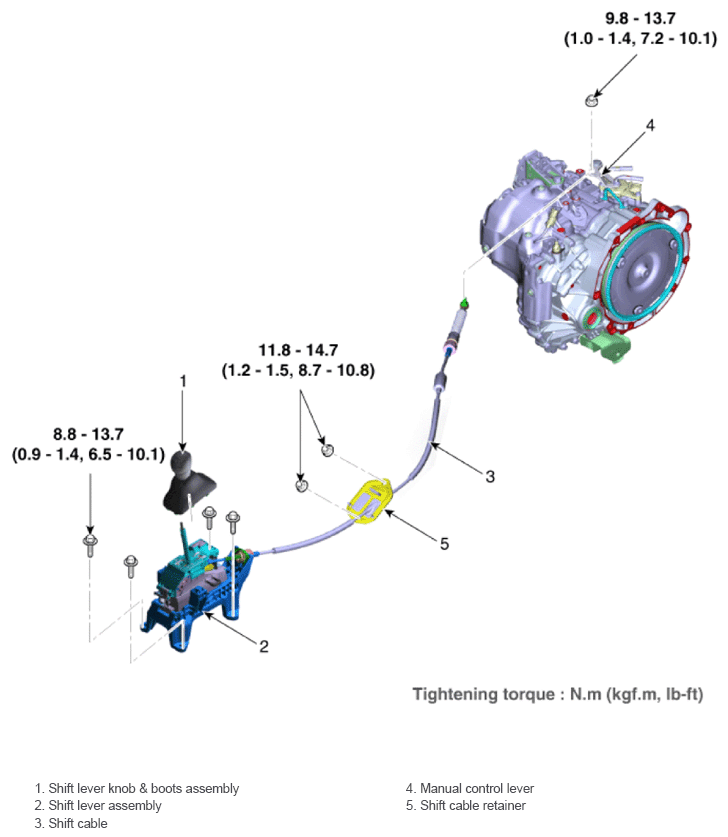

Fig 1: Shift Lever Components Location With Torque Specifications
G14714641Courtesy of HYUNDAI MOTOR AMERICA
