Active Test Mode

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

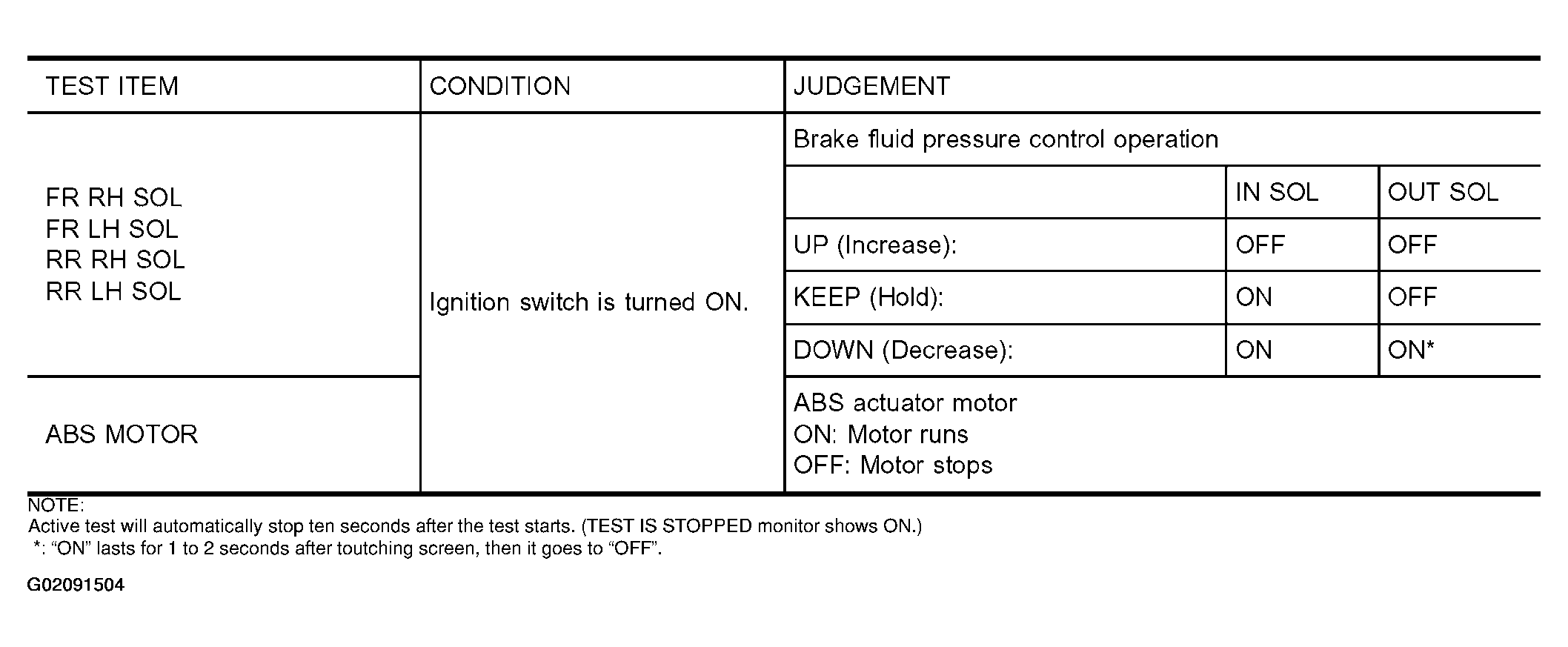

Fig 1: Identifying Active Test Mode Judgements
G02091504Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED monitor shows ON.) *: "ON" lasts for 1 to 2 seconds after touching screen, then it goes to "OFF".
