Description and operation: Notes

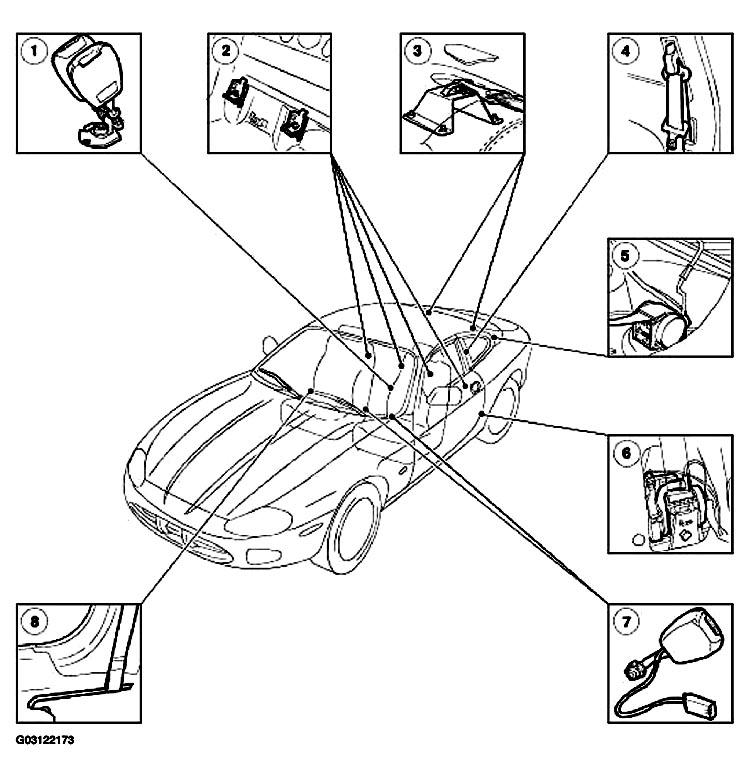

SAFETY BELT SYSTEM COMPONENTS

G03122173
Item Part Number Description
1 - Rear center seat belt buckle
2 - Child seat lower international standards organization fix (ISOfix) anchors
3 - Child seat upper anchor
4 - Front seat belt upper anchor (coupe only)
5 - Rear seat belt retractor
6 - Front seat belt retractor and pretensioner
7 - Front seat belt buckle
8 - Front seat belt lower anchor
