Antenna Module - Export: Removal
WARNING: This page is about a different car, the 2003 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headliner. Refer to HEADLINER
.
- Disconnect the battery power lead connector from the antenna module.

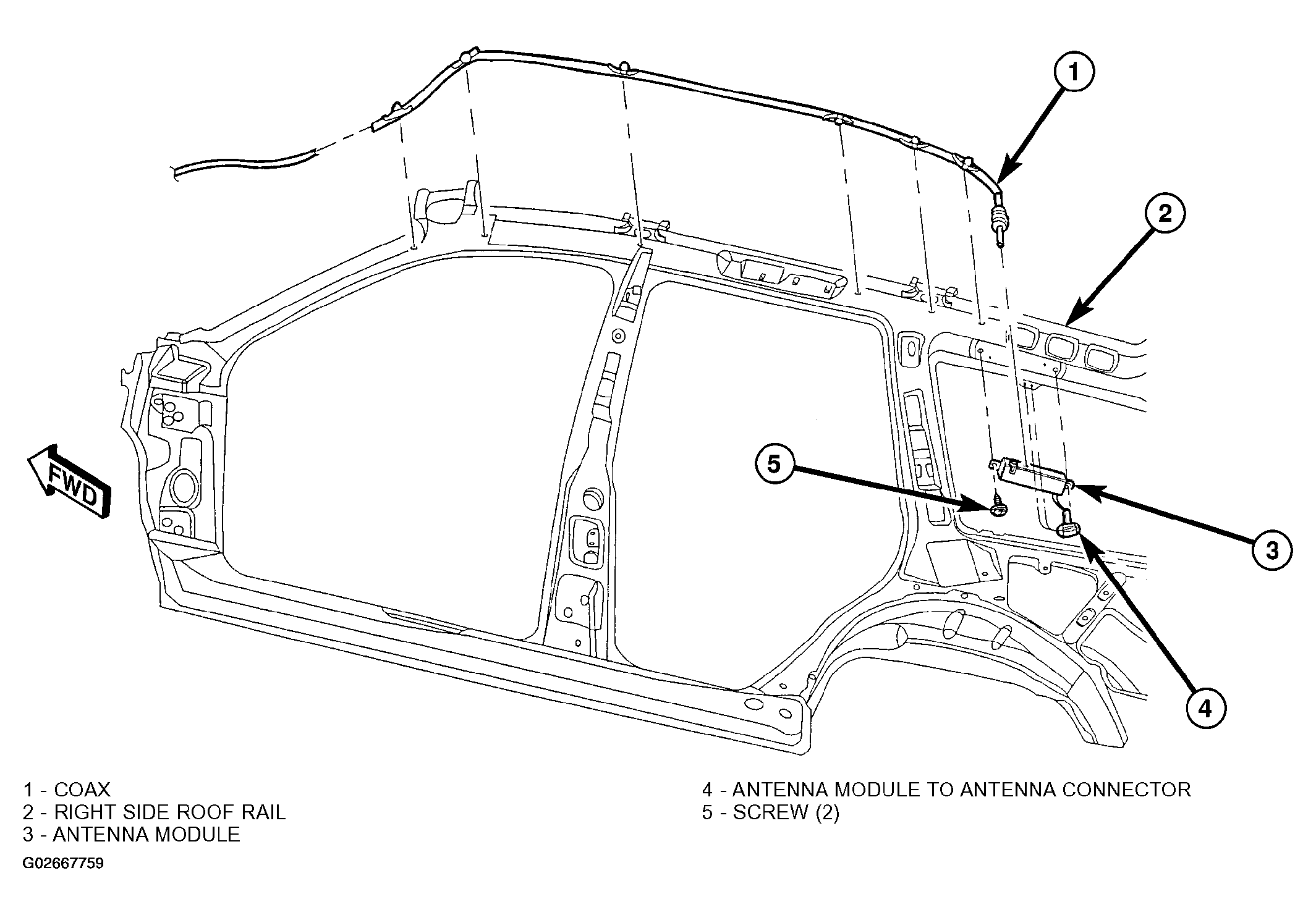

- Disconnect the antenna module connector from the integral antenna (Fig 1
).
- Remove the mounting screws and the antenna module.
- Disconnect the coax lead from the antenna module.
Courtesy of DAIMLERCHRYSLER CORP.
