Plug, Glow: Installation

Courtesy of CHRYSLER GROUP, LLC

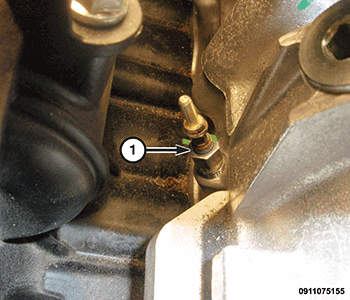

1. Install the glow plug(s) (1). Tighten the glow plug(s) to the proper. Refer to TECHNICAL SPECIFICATIONS .

   Courtesy of CHRYSLER GROUP, LLC

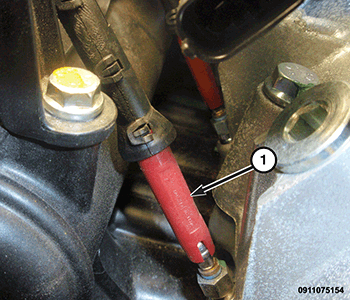

2. Connect the glow plug wire harness connector (1).
3. Install engine cover. Refer to .
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
