Front Case: Components

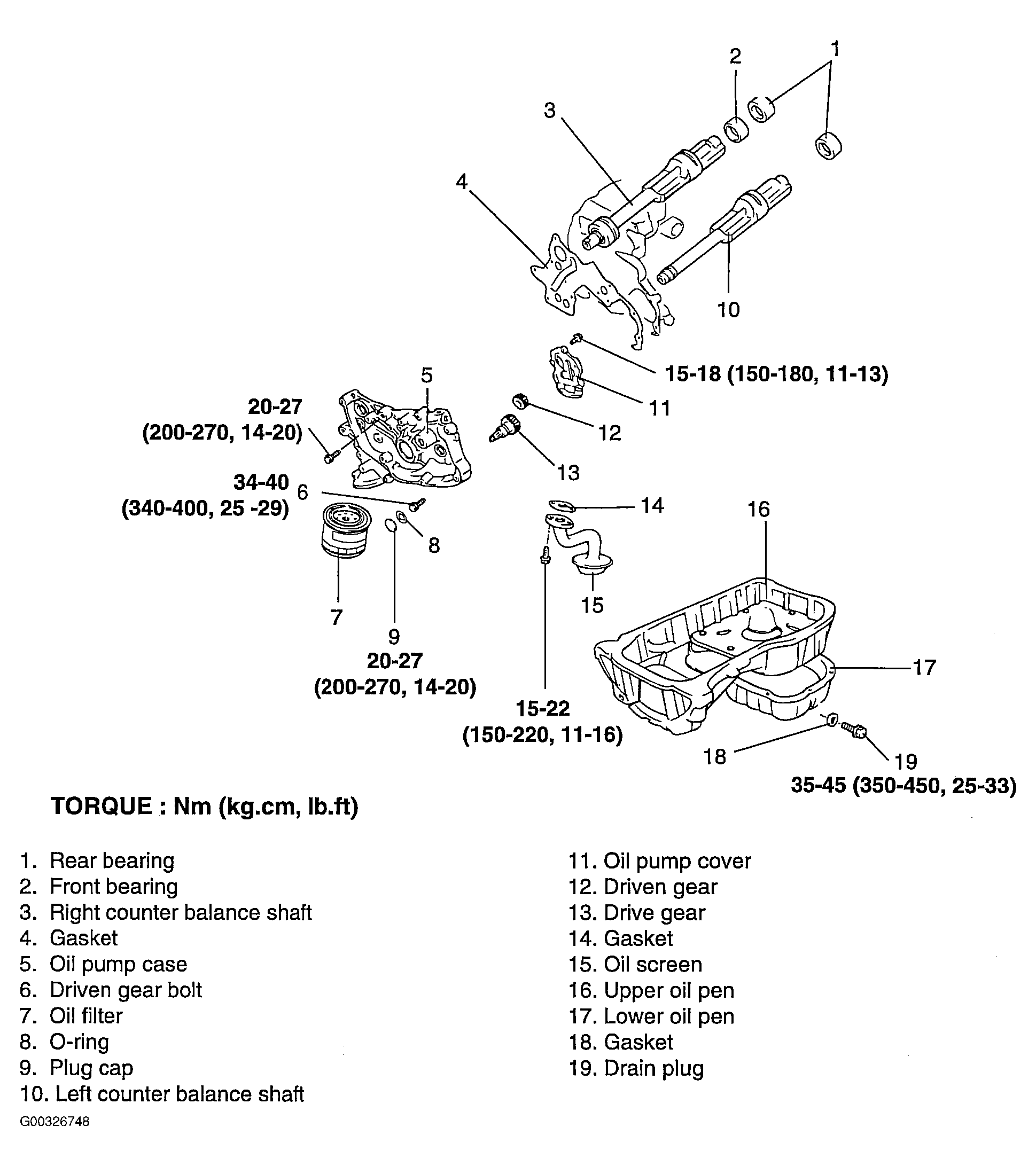

Fig 1: Exploded View Of Front Case
G00326748Courtesy of KIA MOTORS AMERICA, INC.
