Engine Control System - 2.7L
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

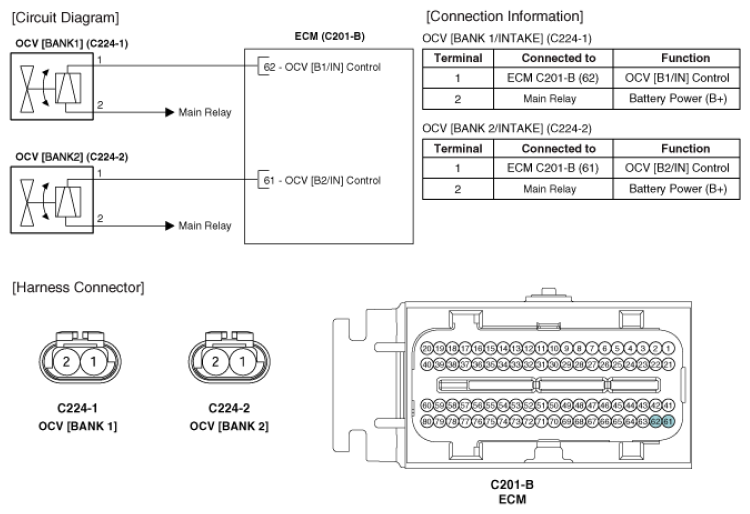

Fig 1: CVVT Oil Control Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
