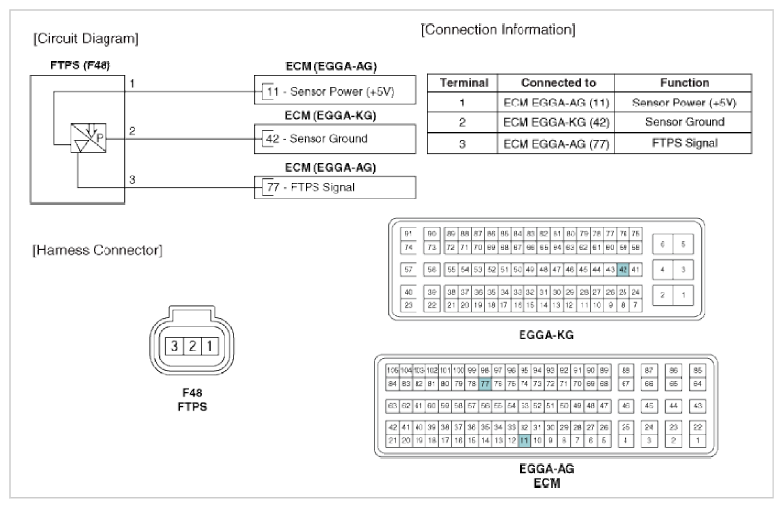

Home › Kia › 2014 › Forte EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram › (A/T)
