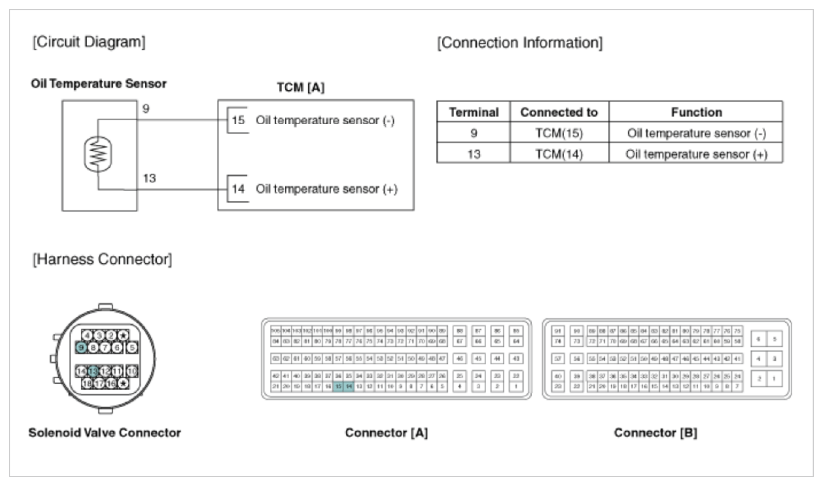

Home › Kia › 2015 › Forte LX, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 1.8L › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
