Repair Procedures: Removal

Disconnect the battery (-) terminal (A) and then (+) terminal (B).

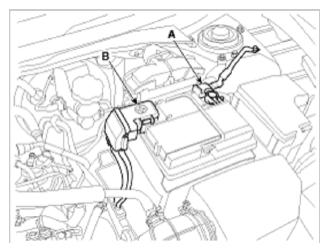

Fig 1: Battery Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air duct and air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery mounting bracket and the insulation pad, and then remove the battery (A).

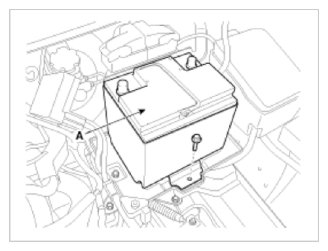

Fig 2: Battery
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ECM connector (A), and then remove ECM (B) after removing the bolts/nut.
Remove the battery tray (C) after removing the bolts.

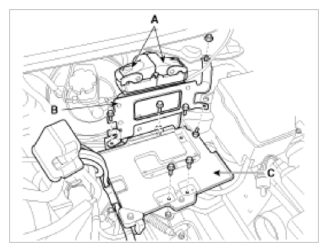

Fig 3: ECM Connector & Battery Tray
