Repair Procedures: Removal

Turn the ignition switch OFF, and then remove the battery negative (-) terminal.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

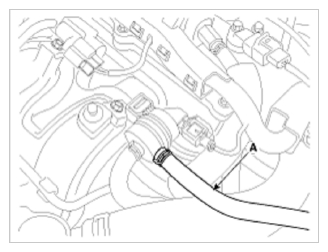

Disconnect the low pressure fuel quick-connector (A).

Fig 1: Low Pressure Fuel Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.

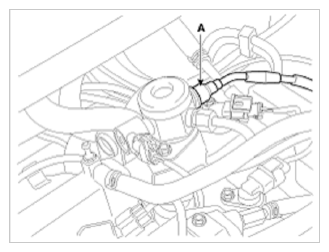

Disconnect the vapor hose (A) which is connected to the PCSV.

Fig 2: Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank.
(Refer to "FUEL TANK ")

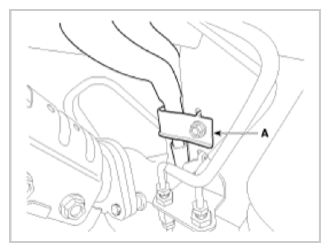

Remove the fuel tube clamp mounting bolt (A).

Fig 3: Fuel Tube Clamp Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

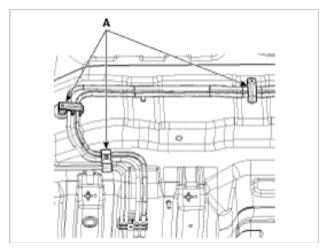

Remove the fixing clips (A).

Fig 4: Fixing Clips
Courtesy of KIA MOTORS AMERICA, INC.

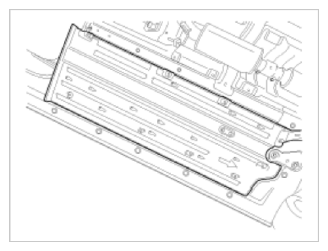

Remove the brake & fuel line protect.

Fig 5: Brake And Fuel Line Protect
Courtesy of KIA MOTORS AMERICA, INC.

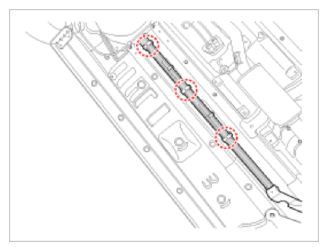

Remove the fixing clips.

Fig 6: Fixing Clips
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel line (A).

Fig 7: Fuel Line
Courtesy of KIA MOTORS AMERICA, INC.
