Repair Procedures: Inspection

  1. Disconnect the hood switch connector (A).

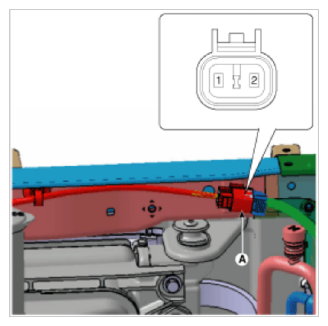

    Fig 1: Identifying Hood Switch Connector
    G09779392Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals
    Fig 2: Hood Switch Connector Terminal Continuity Chart
    G09779393Courtesy of KIA MOTORS AMERICA, INC.
