Kia
›
2016
›
Forte LX, Automatic Trans
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 1.8L
›
Transaxle Oil Temperature Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

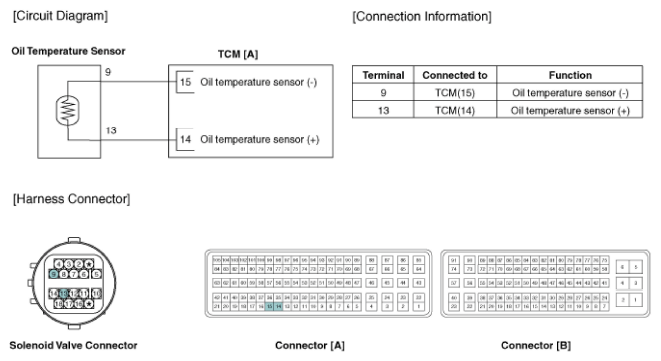

Fig 1: Transaxle Oil Temperature Sensor Pressure Circuit Diagram
