Special Service Tools
| Tool Name/Number | Illustration | Description |
|---|---|---|
| 09200-3N000 Engine support fixture (Bar) |
Used for holding engine assembly when removing/installing transaxle Used with the adapter (09200-4X000) and supporter (09200-2S000) |
|
| 09200-2S000 Engine support fixture (Supporter) |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and adapter (09200-4X000) |
|
| 09200-4X000 Engine support fixture (Adapter) |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000) |
|
| 09453-3L240 Oil seal installer |
Used with the handle (09231-H1100) | |
| 09231-H1100 Handle |
Used with the oil seal installer (09453-3L240) | |
| 09480-A3800 Inhibitor switch guide pin |

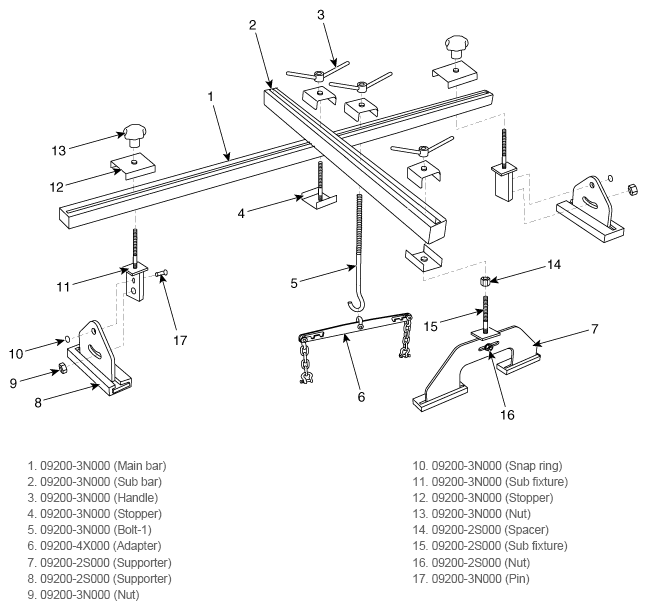

* Engine support fixture special tool assembly drawing
