Circuit Diagram: (M/T)

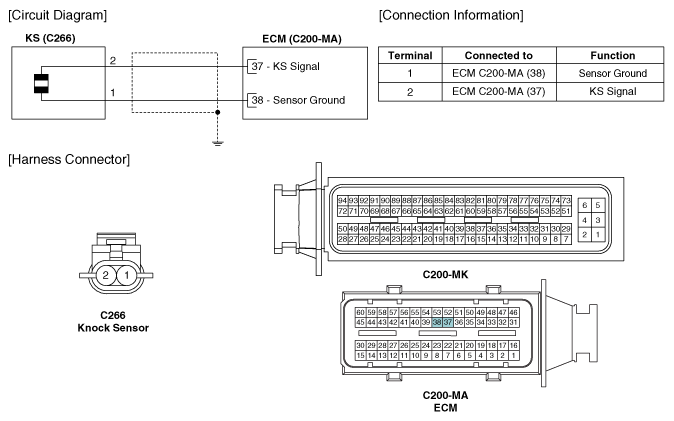

Fig 1: Knock Sensor Circuit Diagram (M/T) And Connector End View
G12239128Courtesy of KIA MOTORS AMERICA, INC.
