Components And Components Location: Removal

Turn the ignition switch OFF.

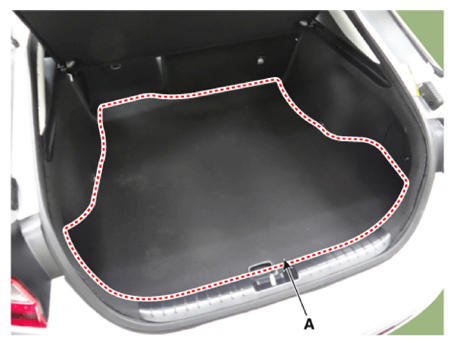

Remove the luggage covering (A).

Courtesy of KIA MOTORS AMERICA, INC.

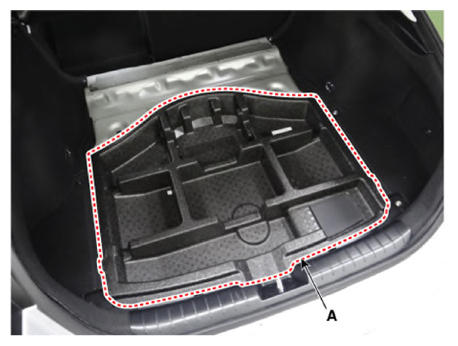

Remove the luggage center tray (A).

Courtesy of KIA MOTORS AMERICA, INC.

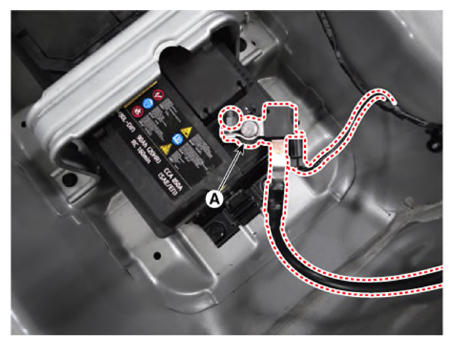

Turn the ignition switch OFF and disconnect the battery negative (-) terminal (A).

Courtesy of KIA MOTORS AMERICA, INC.

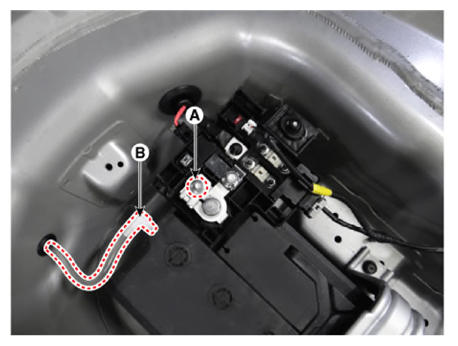

Disconnect the battery positive (+) terminal (A).
Disconnect the vent hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

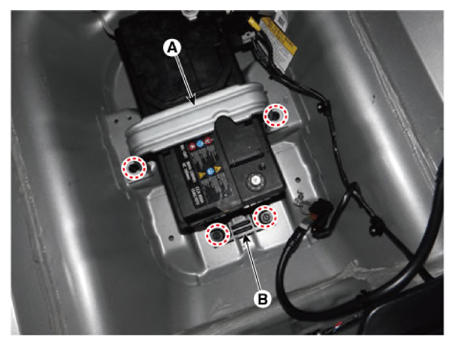

Remove the mounting band (A).
Remove the mounting bracket (B) and then remove the battery.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery.
