Home
›
Kia
›
2018
›
Stinger Base, AWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Intake And Exhaust System - 2.0L
›
Muffler
›
Components And Components Location
›
Components
Components And Components Location: Components

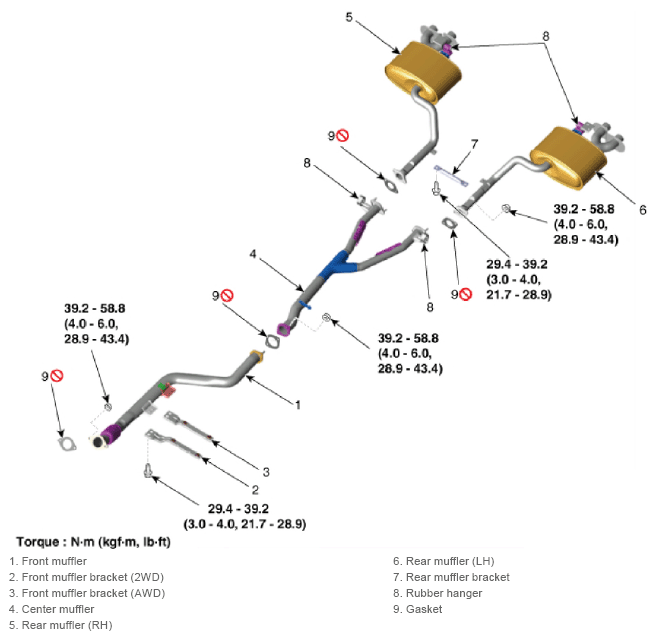

Fig 1: Muffler Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
