Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be careful not to damage the hood and body.

Information

When removing and installing the hood, work in a group of two or more.
When removing the clips, use a clip remover.

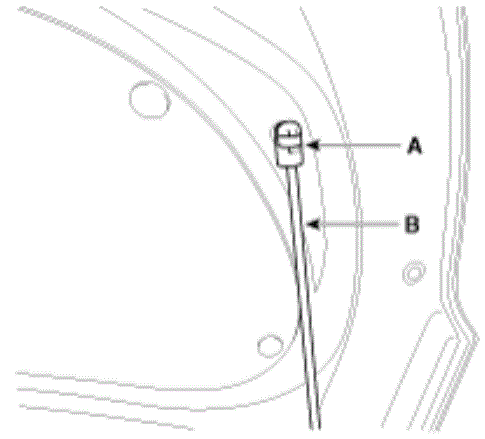

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B).

Courtesy of KIA MOTORS AMERICA, INC.

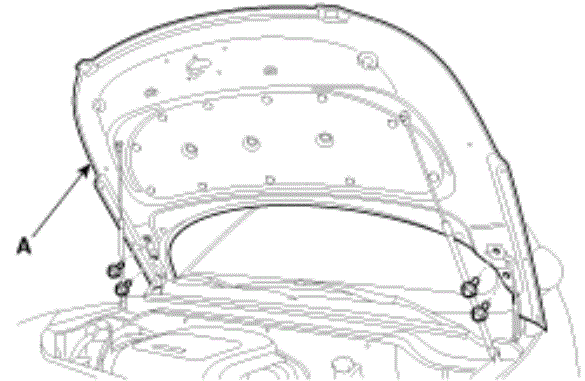

After loosening the hood hinge (B) mounting bolts, remove the hood assembly (A).
Tightening torque:

21.6~26.5 N.m (2.2~2.7 kgf.m, 15.9~19.5 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
