Repair Procedures: Removal
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Information
- Mark all wiring and hoses to avoid misconnection.
- For release the fuel system pressure before remove the engine assembly, start the engine without fuel pump relay. And then turn off the ignition switch after engine stops.
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - " ENGINE COVER ")
- Disconnect the battery negative terminal.
- Remove the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - " AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - " ENGINE ROOM UNDER COVER ")
- Drain the engine coolant.
(Refer to Cooling System - " COOLANT ")

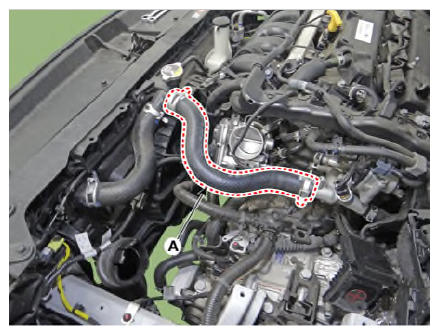

- Disconnect the radiator upper hose (A).

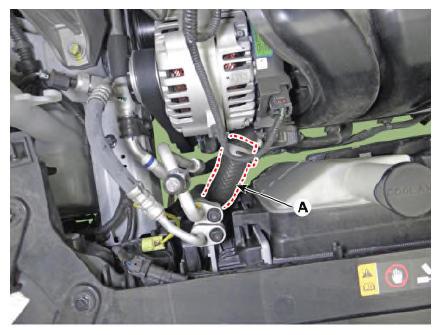

- Disconnect the radiator lower hose (A).
- Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - " COMPRESSOR ")
- Disconnect the wire harness connectors, control cables.
Intelligent Variable Transmission (IVT) System:
(Refer to Intelligent Variable Transmission (IVT) System - "INTELLIGENT VARIABLE TRANSMISSION (IVT) ")
Manual Transaxle:
(Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")

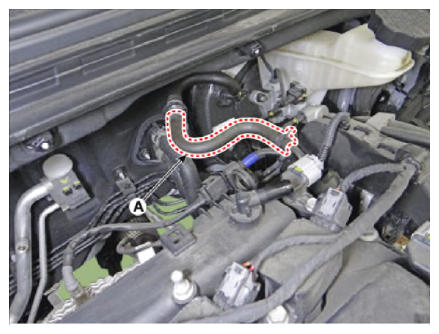

- Disconnect the heater hose (A).

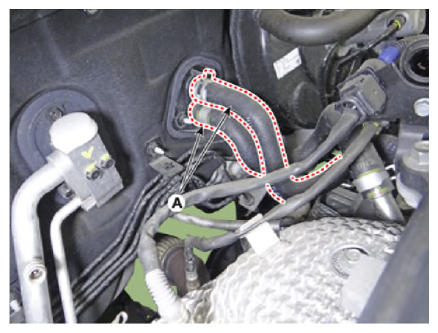

- Disconnect the brake booster vacuum hose (A).

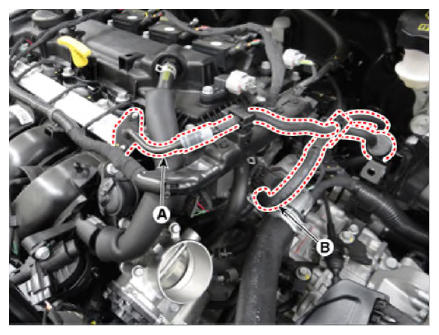

- Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).

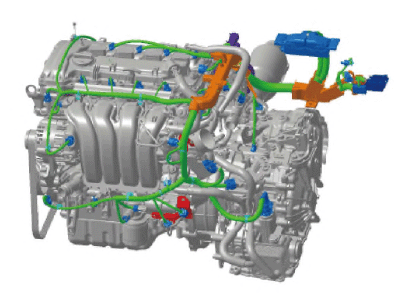

- Disconnect the wiring connector and harness clamps and remove the wiring protector around the engine and transaxle assembly.

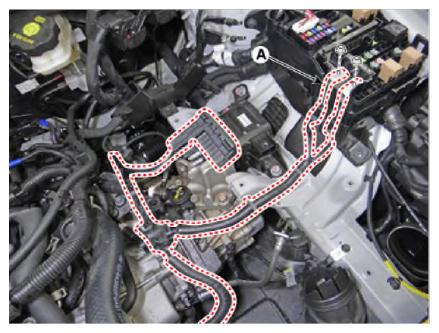

- Disconnect the cables (A) from the junction box.
- Remove the front muffler.
(Refer to Intake and Exhaust System - " MUFFLER ")

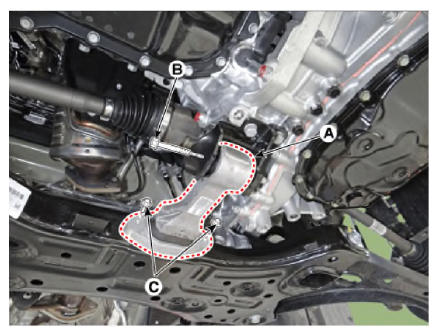

- Remove the roll rod bracket (A).
Tightening torque
Bolt (B):
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)
Bolts (C):
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
- Remove the roll rod mounting support bracket (A).
Tightening torque:
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)
- Remove the sub frame.
(Refer to Suspension system - " SUB FRAME ")
- Support the engine and transaxle assembly with a lift table.

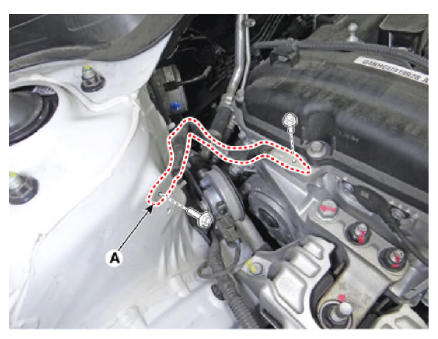

- Disconnect the engine ground cable (A).
Tightening torque:
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

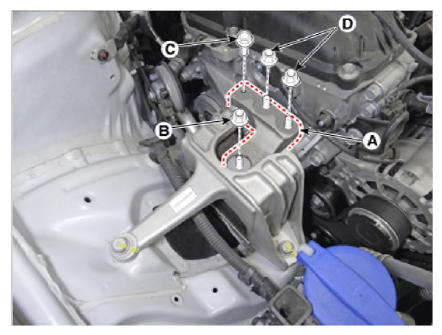

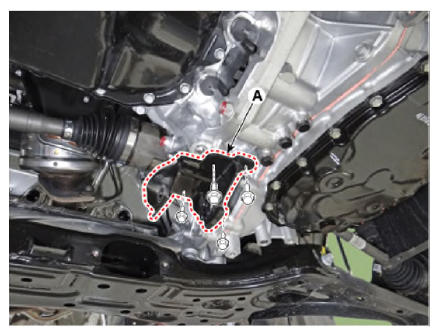

- Remove the engine mounting support bracket (A).
Tightening torque
Nut (B): 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)
Bolt (C), Nuts (D): 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

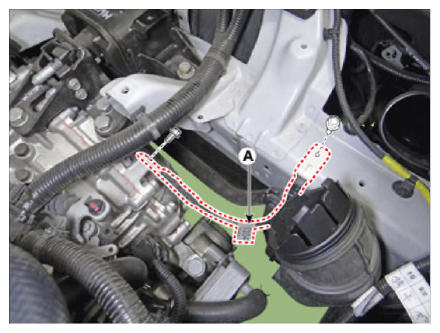

- Disconnect the transaxle ground line (A).

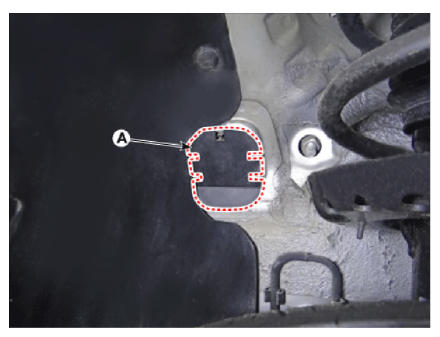

- Remove the mounting side panel packing (A).

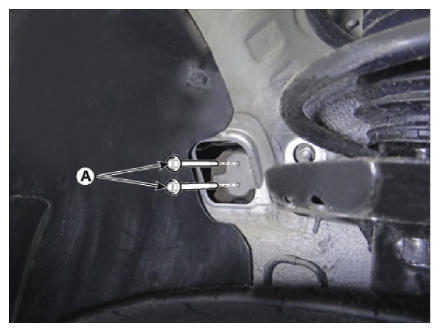

- Remove the transaxle mounting bolts (A).
Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

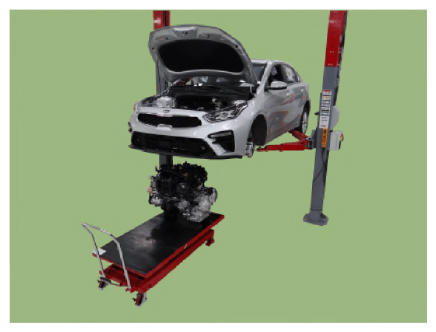

- Remove the engine and transaxle assembly (A) by lifting vehicle.NOTE:
- Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
- When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
