Component Inspection

NOTE:

PIN code is programmed in SMK, transponder, ESCL.
1. If the SMK is not registered with PIN, key teaching process is not proceeded
2. Registering PIN is available after SMK is neutralized.
3. Neutralization of Engine ECM is available with KDS. (Registering PIN code)
4. If the virgin engine ECM is installed on vehicle, Engine ECM is automatically programmed PIN code by SMK
5. Registering PIN code is only possible for virgin or neutralized status.
Smart Key ECM Learning
* All Learning procedure is able to do with a KDS in the vehicle's ignition key off state.
1. Correct PIN Code must be recorded and kept in hand prior to perform "Smart Key Code Saving".
2. In case of SMK is replaced, "Smart Key Code Saving" must be performed.
3. In case wrong PIN signal is inputted 3 times, "Neutralization Mode or Teaching" is prohibited for 1 hour.
4. In case battery is discharged during process of "Neutralization Mode or Teaching", timer will restart and wait for 1 hour to re-do.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Neutralization Mode" with KDS. Perform "ECM Neutralization" with KDS. Perform "SMK Neutralization" with KDS.	Fig.1 to 7
Ignition "ON".	Perform "Smart Key Code Saving" unit with KDS.	Fig.8 to 13

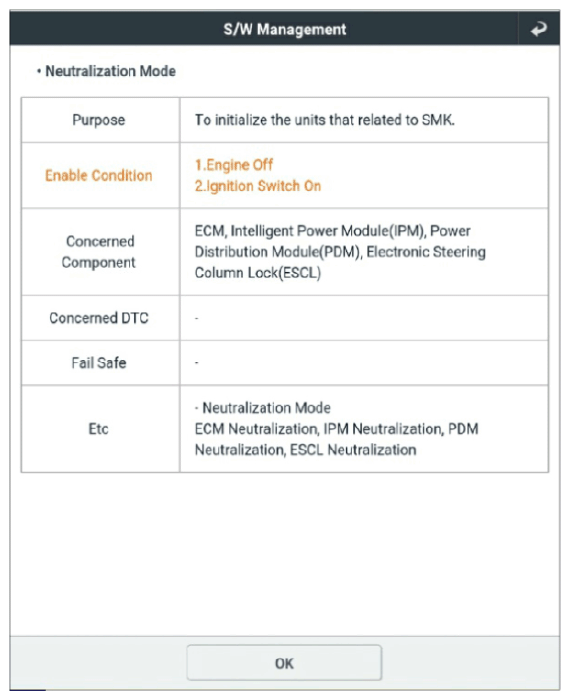

G13817413

Courtesy of KIA MOTORS AMERICA, INC.

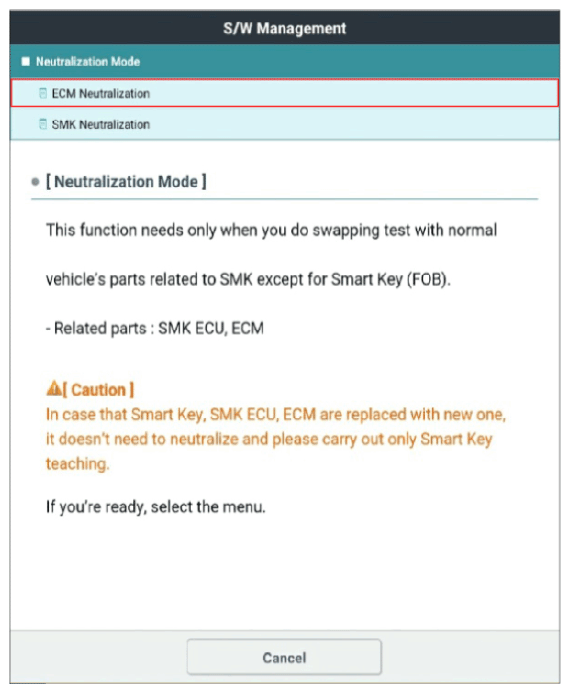

G13817414

Courtesy of KIA MOTORS AMERICA, INC.

G13817415

Courtesy of KIA MOTORS AMERICA, INC.

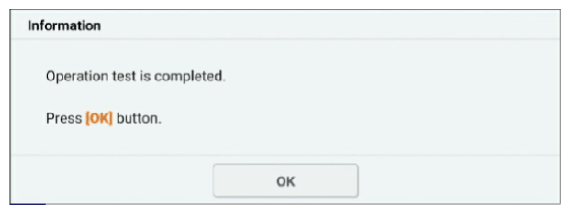

G13817416

Courtesy of KIA MOTORS AMERICA, INC.

G13817417

Courtesy of KIA MOTORS AMERICA, INC.

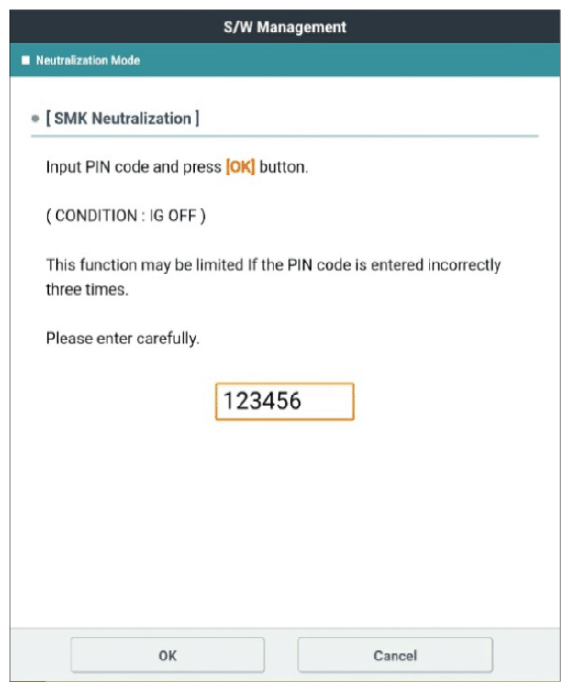

G13817418

Courtesy of KIA MOTORS AMERICA, INC.

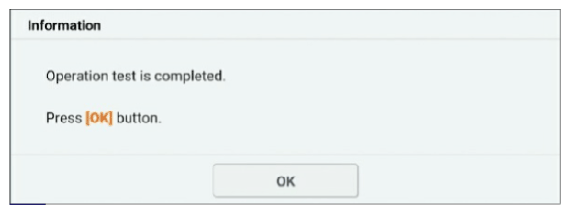

G13817419

Courtesy of KIA MOTORS AMERICA, INC.

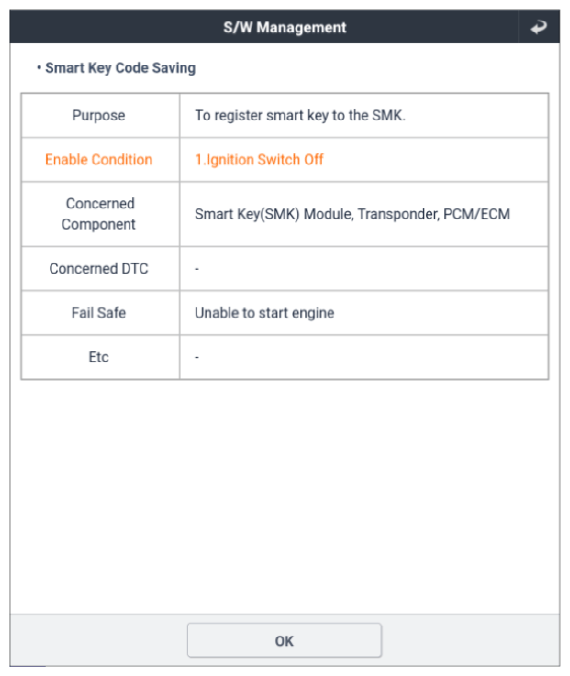

G13817420

Courtesy of KIA MOTORS AMERICA, INC.

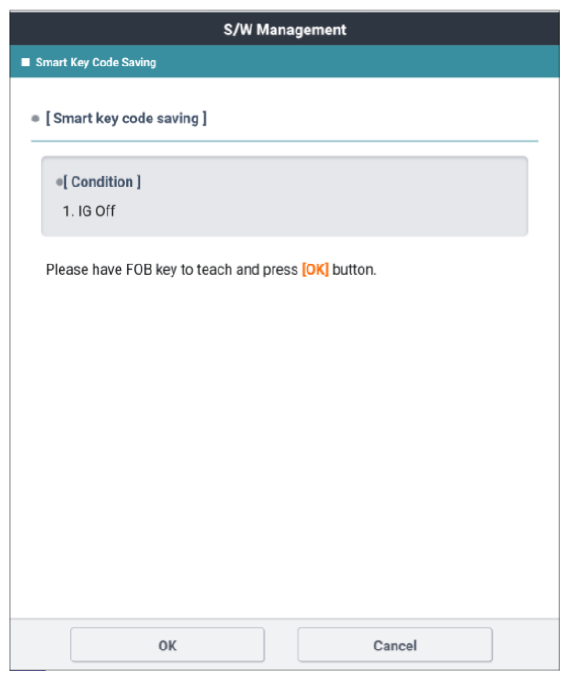

G13817421

Courtesy of KIA MOTORS AMERICA, INC.

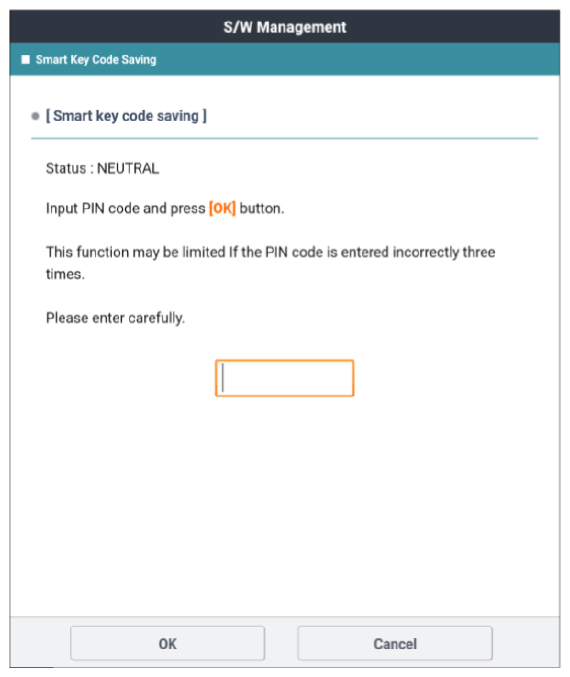

G13817422

Courtesy of KIA MOTORS AMERICA, INC.

G13817423

Courtesy of KIA MOTORS AMERICA, INC.

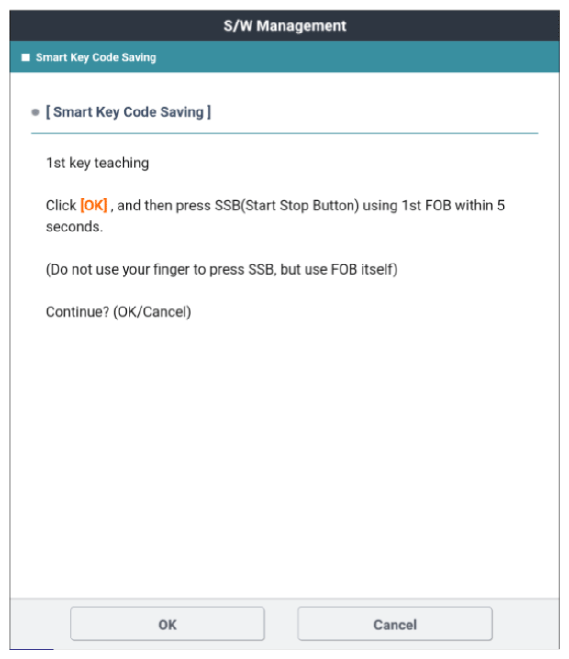

G13817424

Courtesy of KIA MOTORS AMERICA, INC.

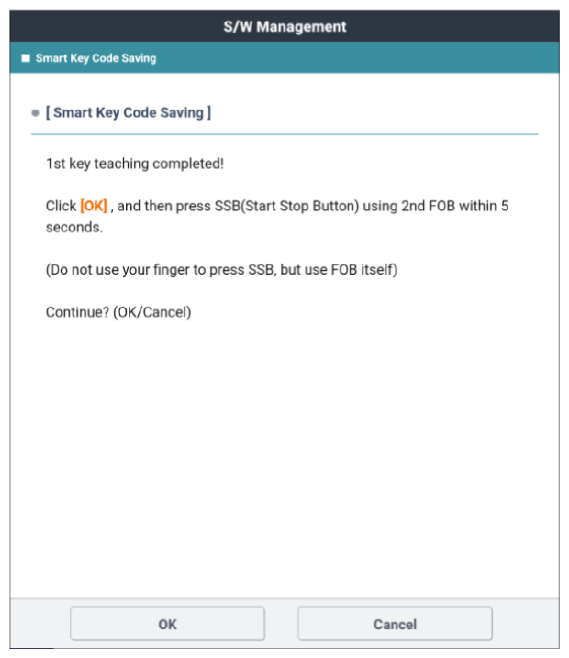

G13817425

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and Go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SMK and then Go to "Verification of Repair " procedure.
