Components And Components Location: Components

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

[G 1.6 T-GDI GAMMA ll, 2WD]

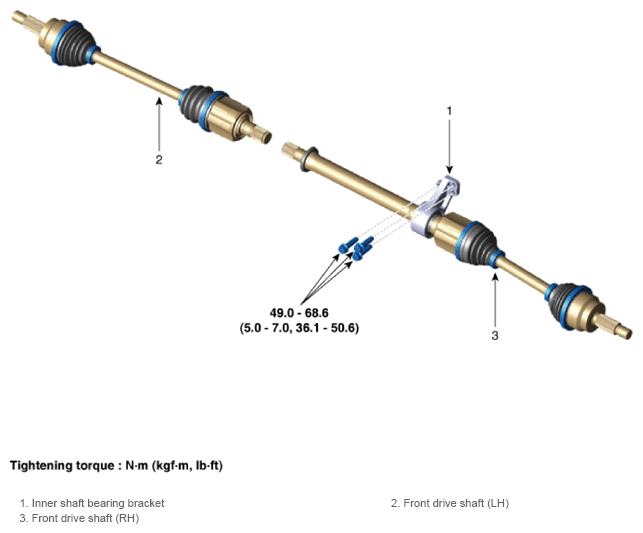

Fig 1: Front Driveshaft Components Location With Torque Specification (G 1.6 T-GDI Gamma Ll, 2WD)

Courtesy of KIA MOTORS AMERICA, INC.

[G 1.6 T-GDI GAMMA ll, AWD]

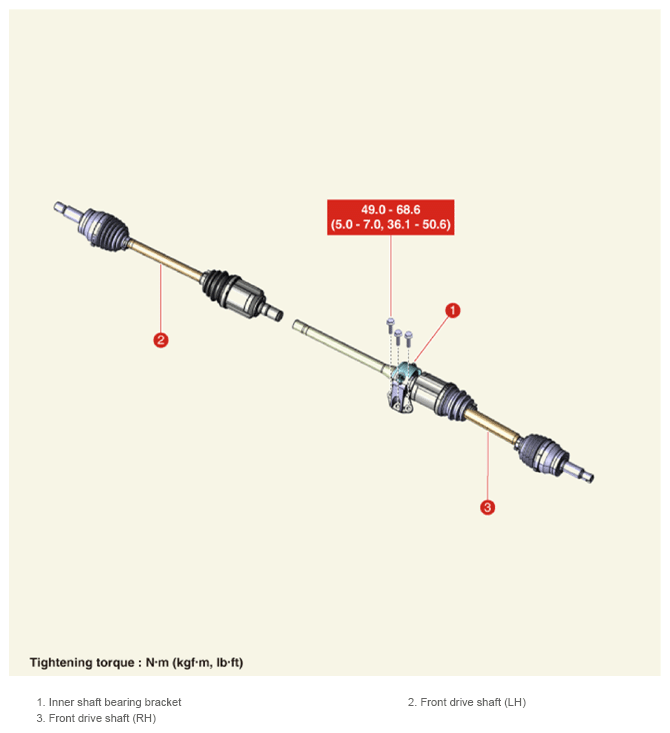

Fig 2: Front Driveshaft Components Location With Torque Specification (G 1.6 T-GDI Gamma Ll, AWD)

Courtesy of KIA MOTORS AMERICA, INC.

[G 2.5 T-GDI Theta lll]

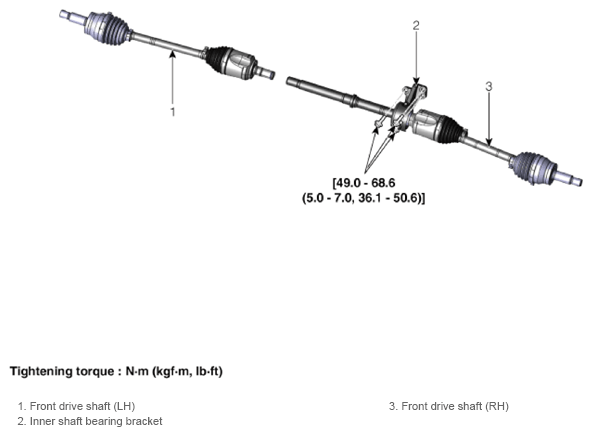

Fig 3: Front Driveshaft Components Location With Torque Specification (G 2.5 T-GDI Theta Lll)

Courtesy of KIA MOTORS AMERICA, INC.
