Repair Procedures: Removal

Disconnect the negative battery terminal.

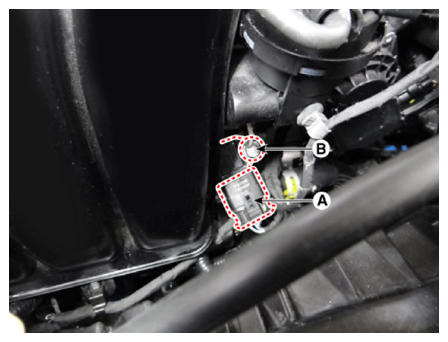

Disconnect the MAPS & IATS connector (A).
Remove the MAPS & IATS (A) from the intake manifold after loosening the mounting bolt (B).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
