Repair Procedures: Removal

  1. Turn the ignition switch OFF.

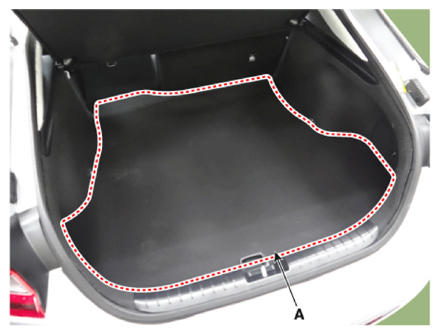

  2. Remove the luggage covering (A).
    G13423205Courtesy of KIA MOTORS AMERICA, INC.

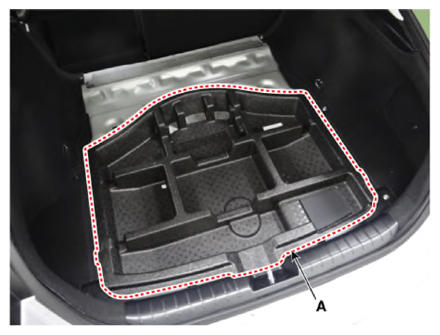

  3. Remove the luggage center tray (A).
    G13423206Courtesy of KIA MOTORS AMERICA, INC.

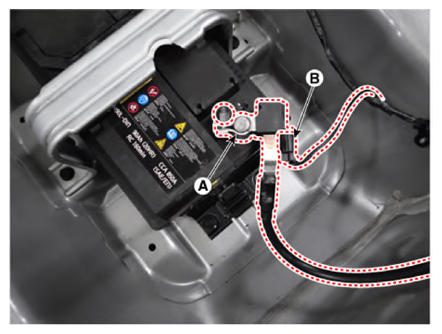

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G13423207Courtesy of KIA MOTORS AMERICA, INC.

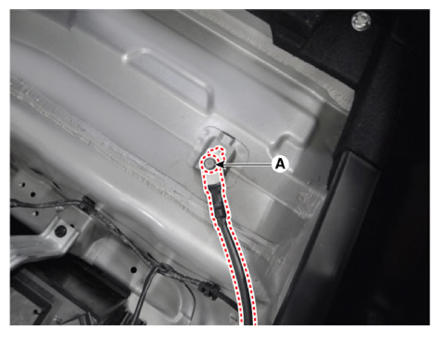

  6. Remove the battery sensor by loosening the mounting bolts (A).

    Battery sensor cable mounting bolt:

    27.0 - 33.0 N.m (2.7 - 3.4 kg.fm, 19.9 - 24.3 lb.ft)

    G13423208Courtesy of KIA MOTORS AMERICA, INC.
