Removal & Installation
- Disconnect battery negative lead.
- Remove drivers side front seat for access. See PASSENGER'S SEAT ASSEMBLY
.

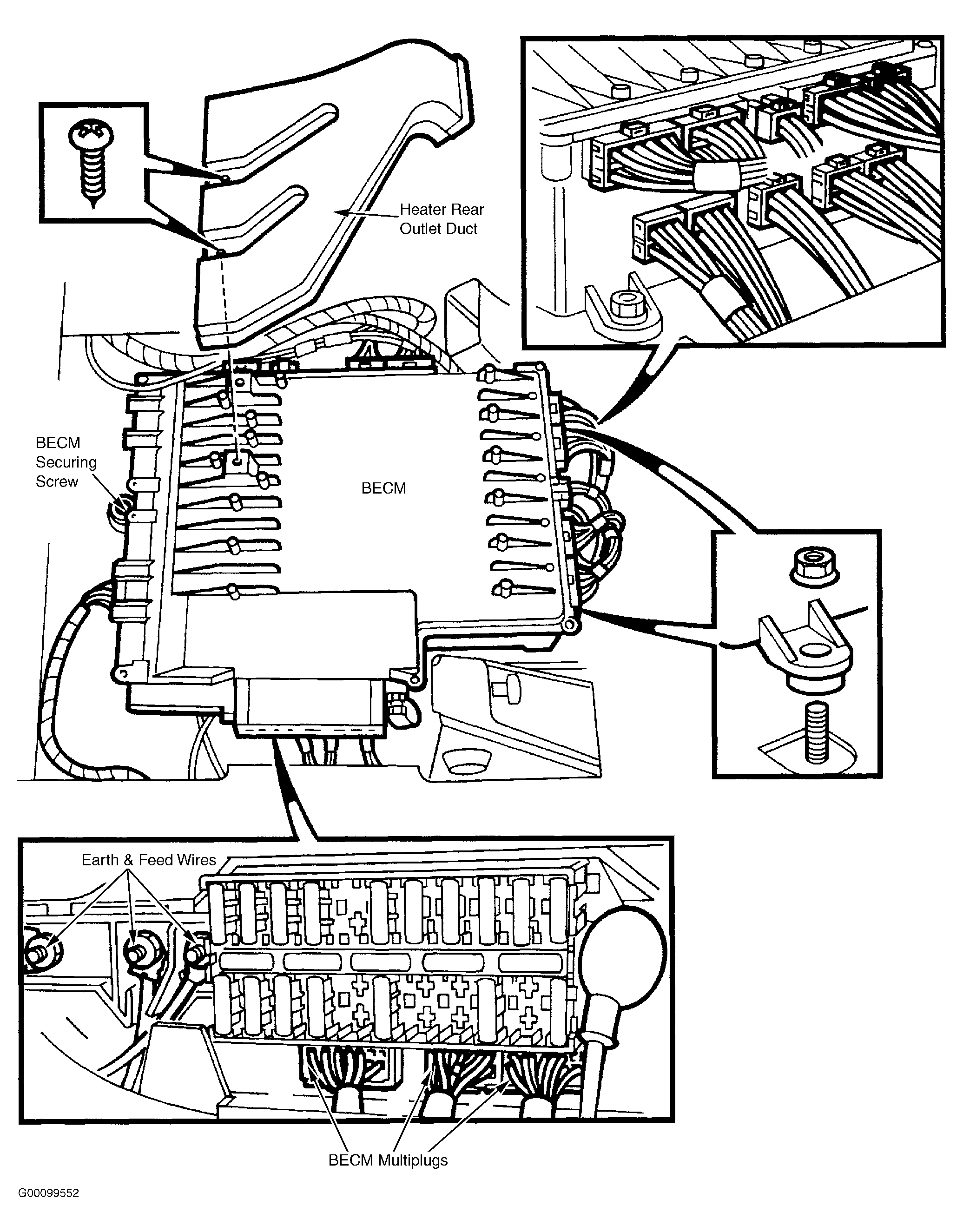

- Remove 2 screws securing heater rear outlet duct. Remove duct. See Fig 1
.
- Release carpet over BECM. Position aside.
- Remove 2 nuts and screw securing BECM to mounting. See Fig 1
.
- Disconnect multiplugs from BECM. See Fig 1
.
- Release terminal covers.
- Disconnect 1 earth and 3 feed wires. See Fig 1
.
- Remove BECM. See Fig 1
.
- To install, reverse removal procedure.
Courtesy of LAND ROVER NORTH AMERICA, INC.
