Auto Up/Down Function Does Not Operate At Passenger Side: Wiring Diagram

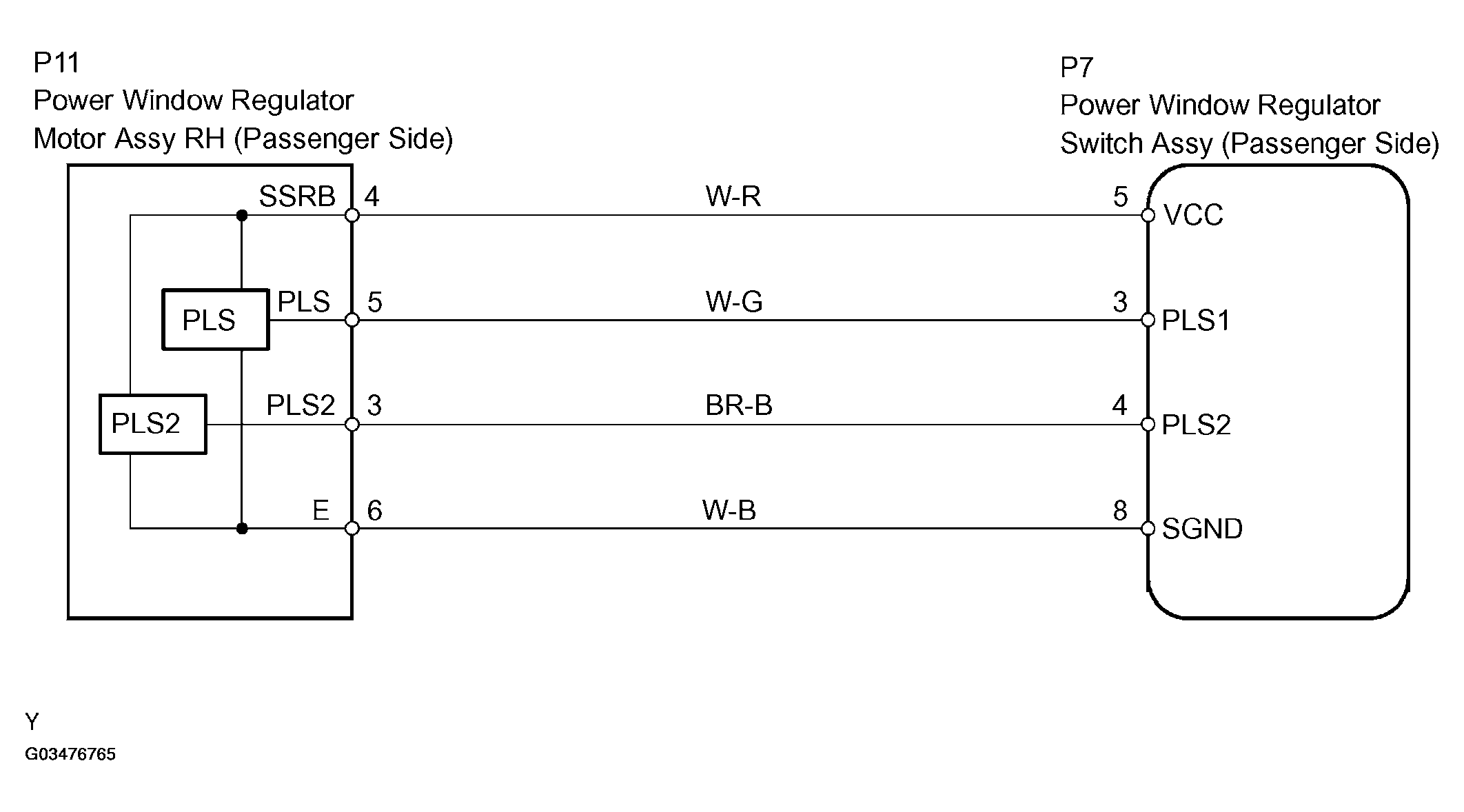

Fig 1: Identifying Auto Up/Down Function Does Not Operate At Passenger Side Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
