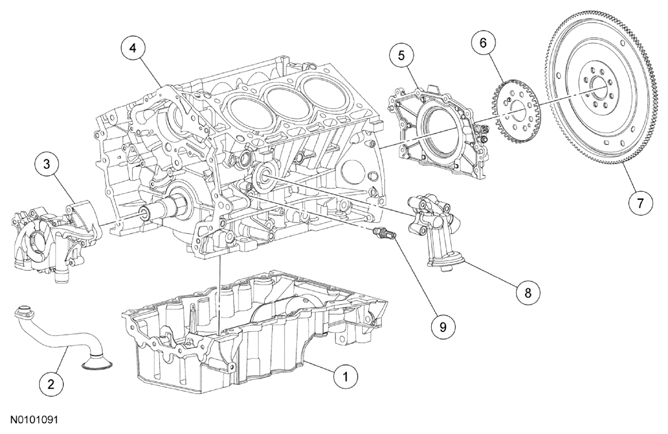

Engine Lower (View 1)
WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6675 |
Oil pan |
| 2 |
6622 |
Oil pump screen and pickup tube |
| 3 |
6621 |
Oil pump |
| 4 |
6010 |
Cylinder block |
| 5 |
6D327 |
Crankshaft rear seal retainer |
| 6 |
12A227 |
Crankshaft sensor ring |
| 7 |
6375 |
Flexplate |
| 8 |
6881 |
Oil filter adapter |
| 9 |
9278 |
Engine Oil Pressure (EOP) switch |
