Fuel Pump Control Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

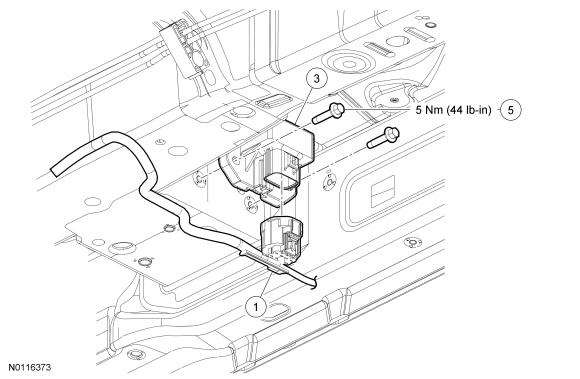

Fig 1: Fuel Pump Control Module Component Location With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Fuel Pump Control Module (FPCM) electrical connector (part of 14407)
2	W505256	FPCM bolt (2 required)
3	9345	FPCM
