Ignition System Location Index

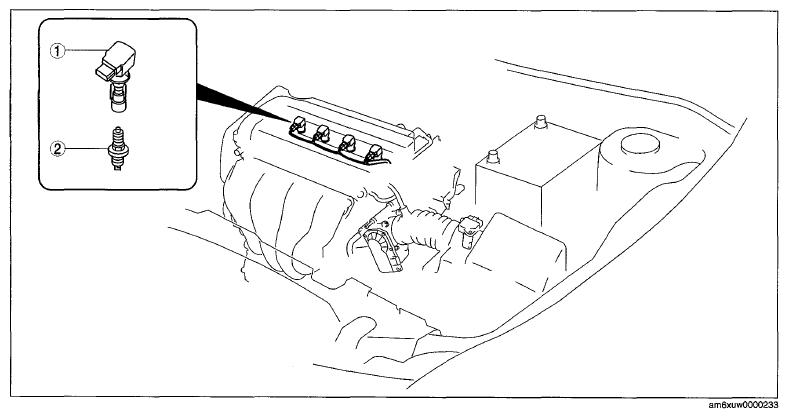

Fig 1: Ignition Coil And Spark Plug

Courtesy of MAZDA MOTORS CORP.

IGNITION SYSTEM LOCATION INDEX

1	Ignition coil (See IGNITION COIL REMOVAL/INSTALLATION .) (See IGNITION COIL INSPECTION .)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION .) (See SPARK PLUG INSPECTION .)
