Purge control signal

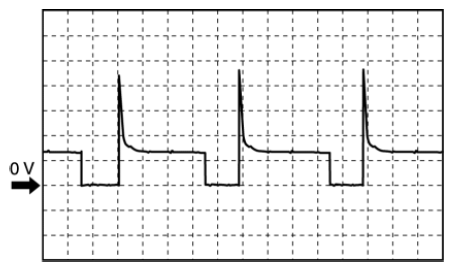

Fig 1: Purge Control Signal Waveform

G08140764

PCM terminals

2C(+)-body ground(-)

Oscilloscope setting

10 V/DIV (Y), 20 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
