Engine Controls - Tests W/Codes - Electronic Accelerator Controls
›
System Tests
›
Electronic Acceleration System Tests (Section 23)
›
Electronic Acceleration System Tests 1.0
Electronic Acceleration System Tests 1.0

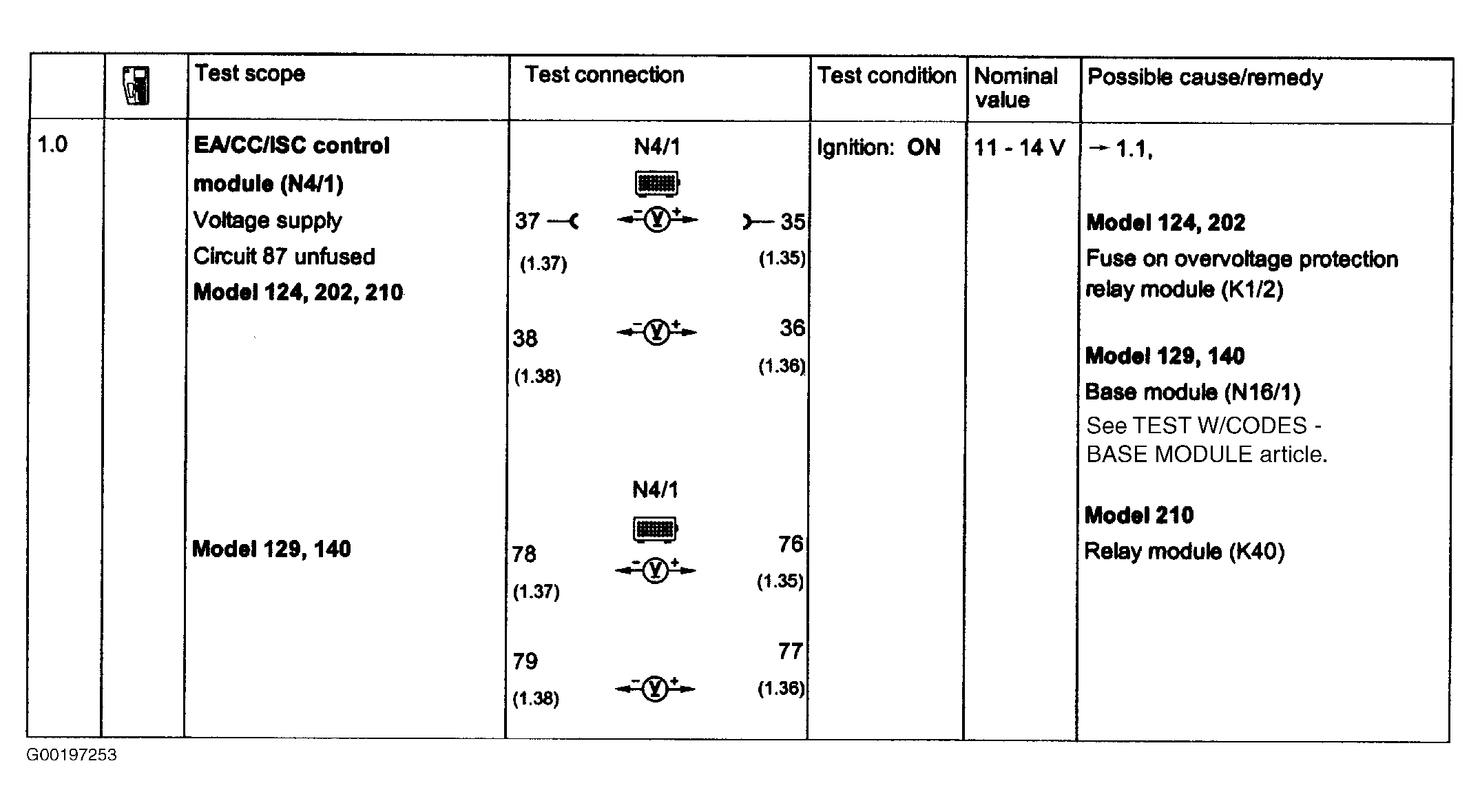

Fig 1: Electronic Acceleration System Tests (Step 1.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
