Electrical System Test - Section 23 (Steps 8.0-10.0)
Electrical System Test - Section 23 (Steps 8.0-10.0)

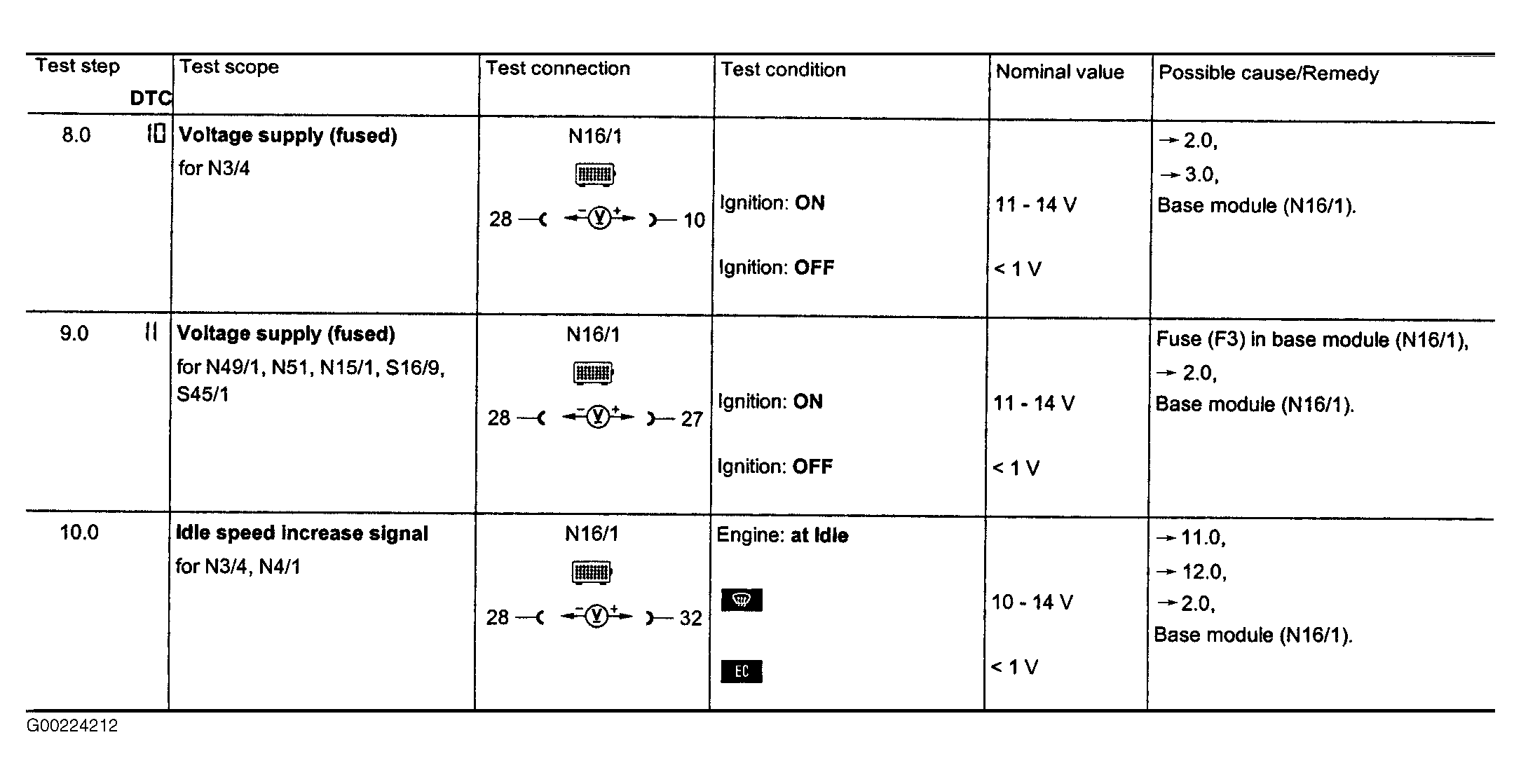

Fig 1: Electrical System Test - Section 23 (Steps 8.0-10.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
