Engine Controls - Self-Diagnostics With Codes
›
Diagnostic Trouble Code Identification
›
Electronic Accelerator Tests
›
Electronic Accelerator Test (Steps 2.1-3.1)
Electronic Accelerator Test (Steps 2.1-3.1)

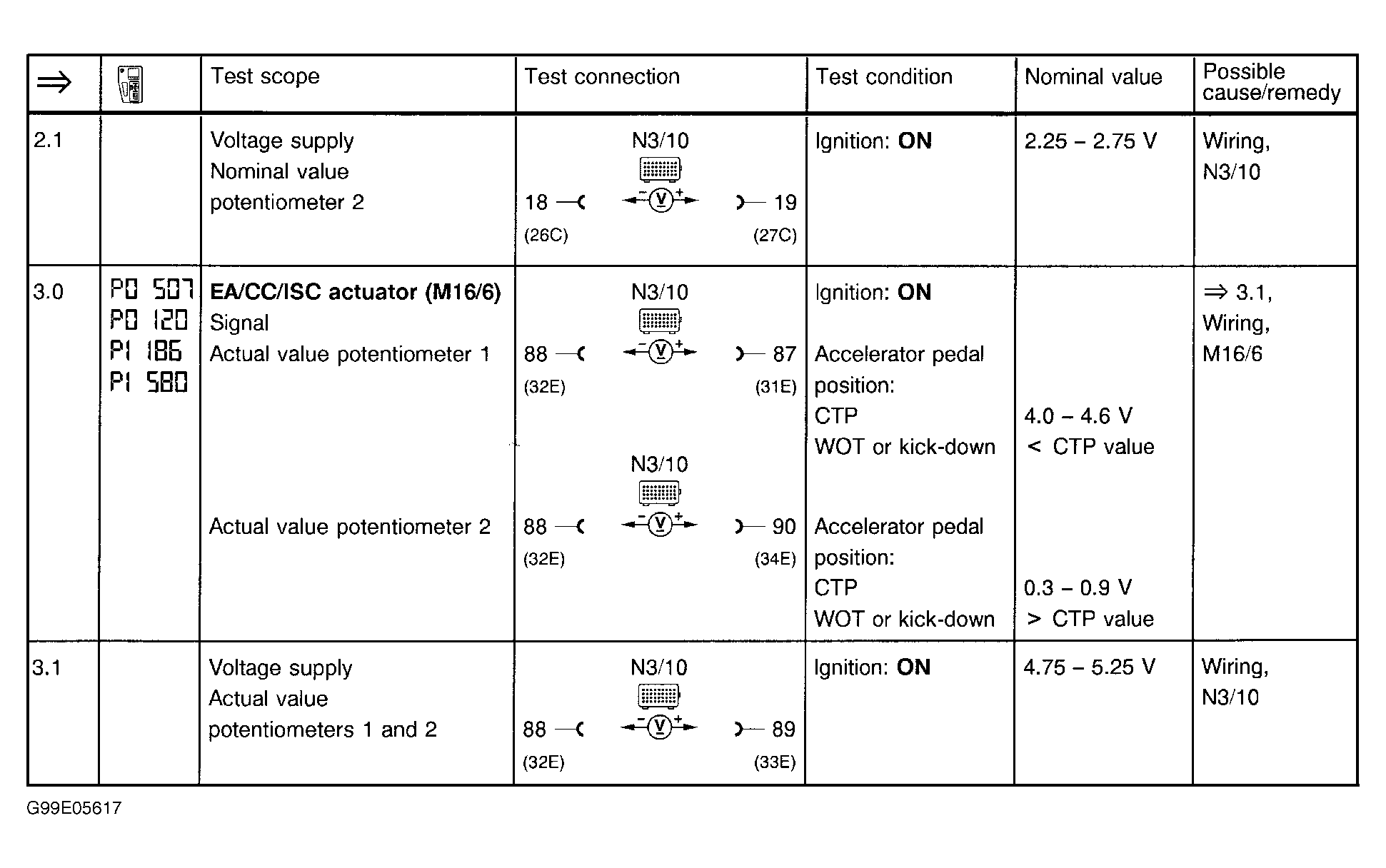

Fig 1: Electronic Accelerator Test (Steps 2.1-3.1)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
