Ignition System Test (Steps 3.0 & 4.0)
Ignition System Test (Steps 3.0 & 4.0)

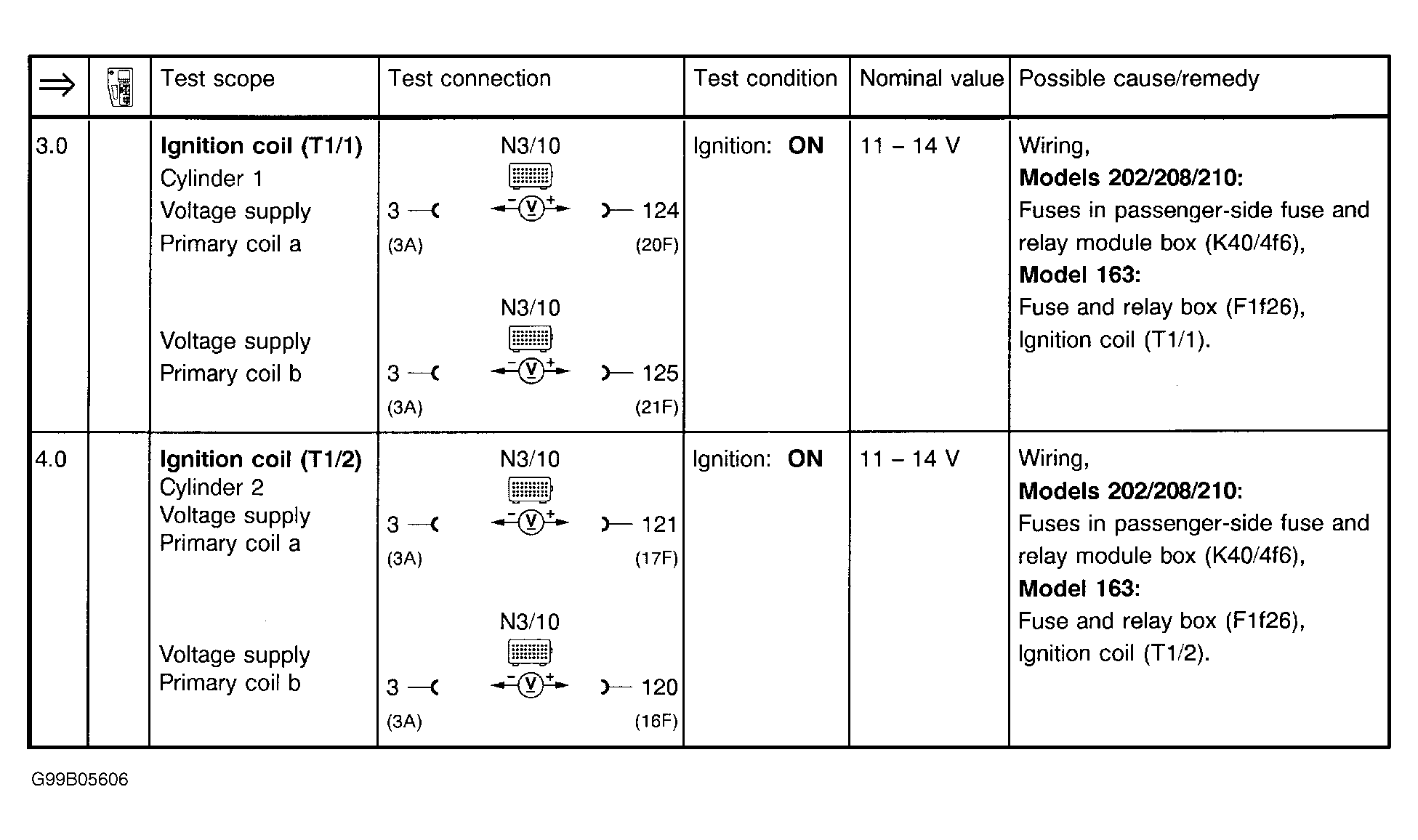

Fig 1: Ignition System Test (Steps 3.0 & 4.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
