Seat adjust switch

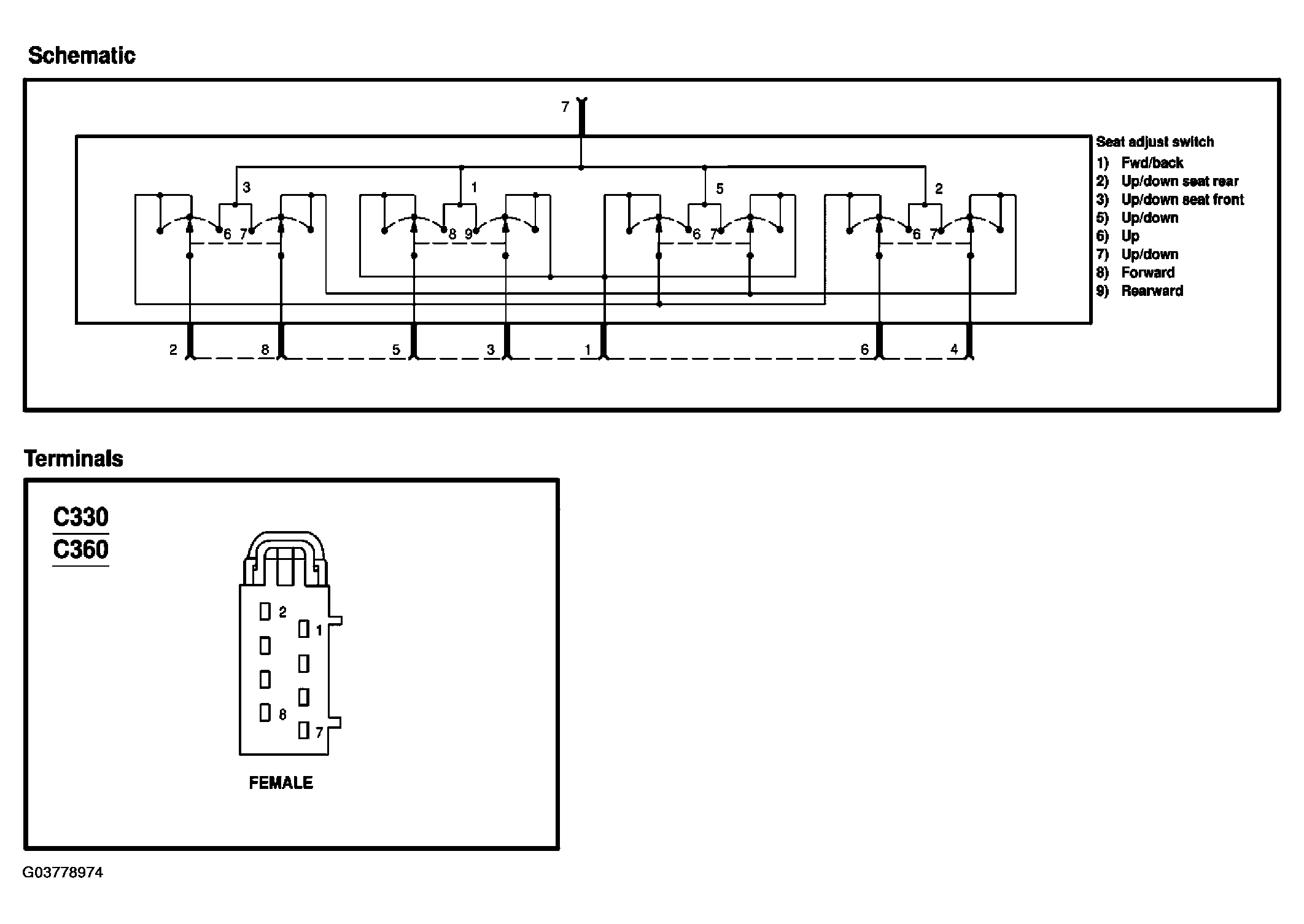

Fig 1: Testing Seat Adjust Switch (1 Of 2)
G03778974Courtesy of FORD MOTOR CO.

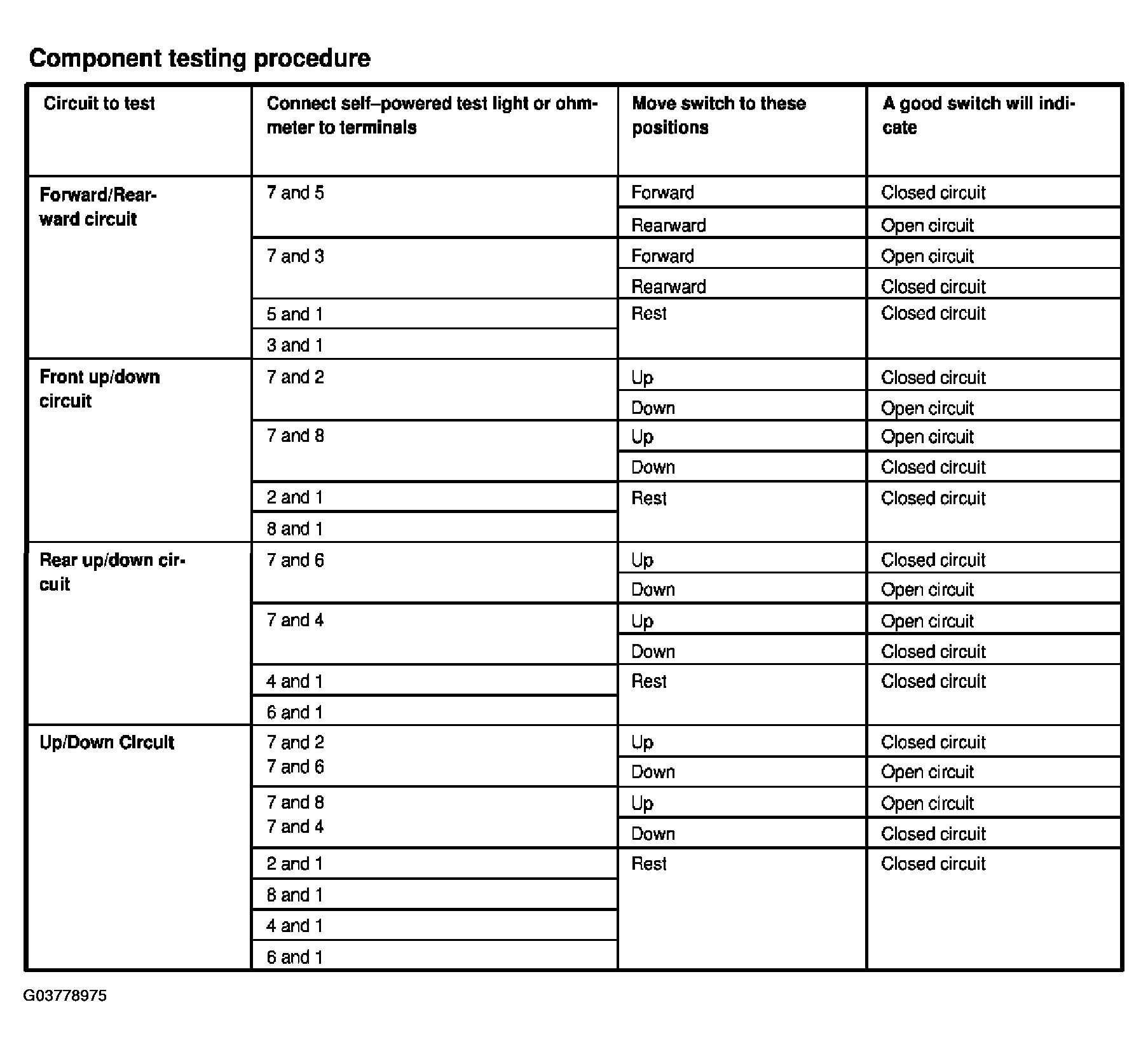

Fig 2: Testing Seat Adjust Switch (2 Of 2)
G03778975Courtesy of FORD MOTOR CO.
