Dr-19A: Testing Purge System

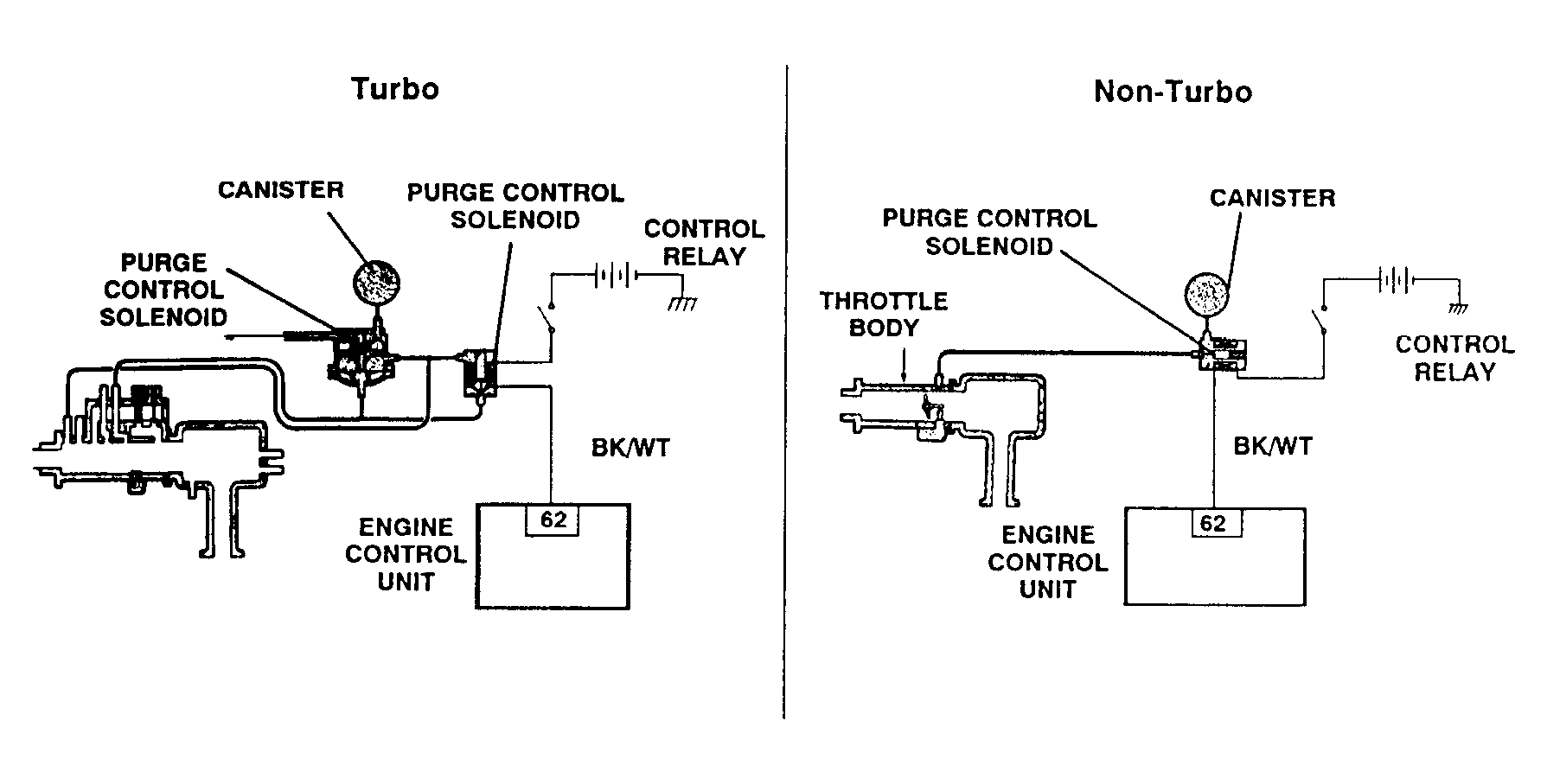

Fig 1: Driveability Test DR-19A: Circuit Diagram

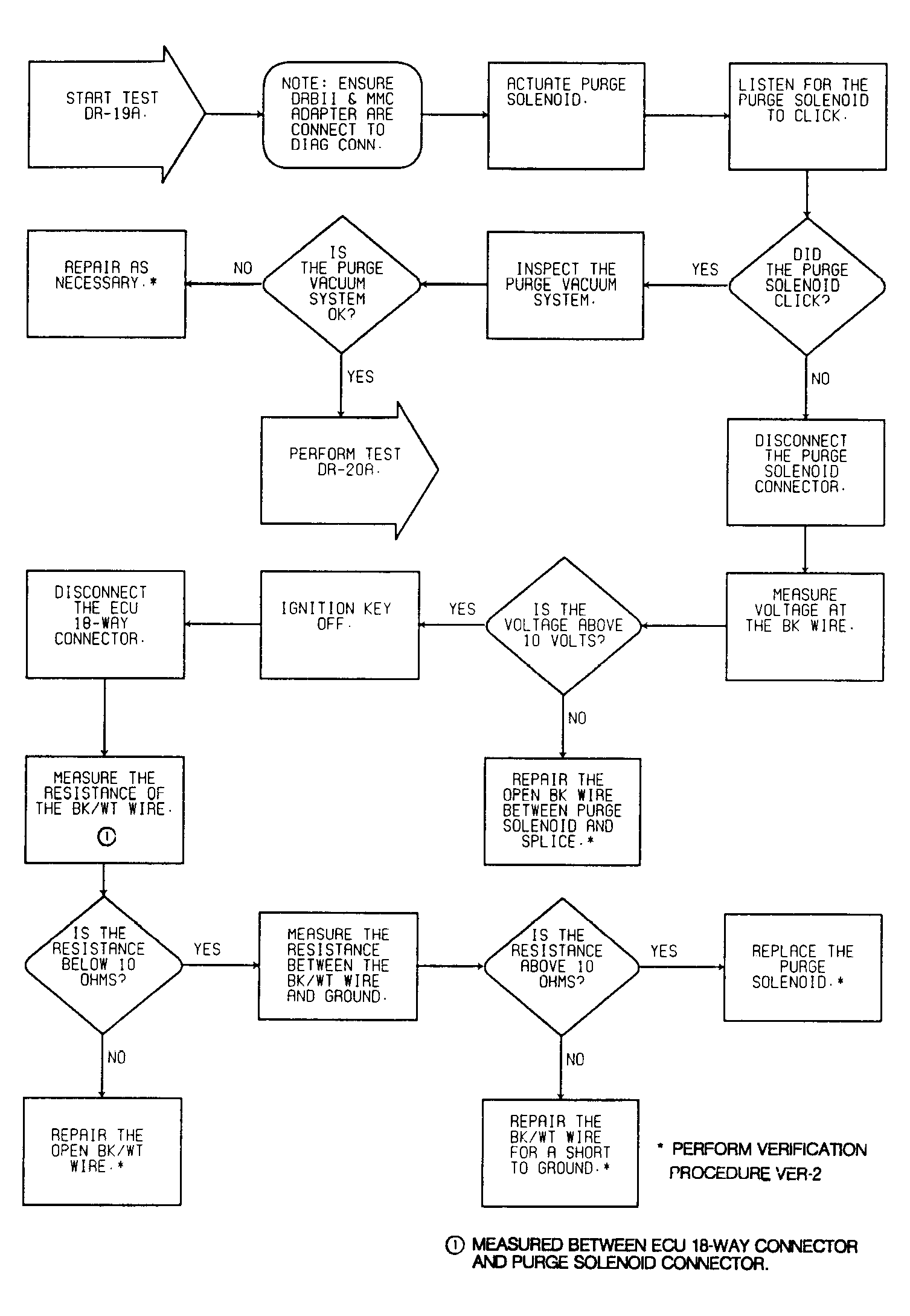

Fig 2: Driveability Test DR-19A: Diagnostic Flow Chart

NOTE: Ensure DRBII & MMC Adapter Are Connected To Diagnostic Connector

Fig 3: Test DR-19A
