Function Of Control Valves

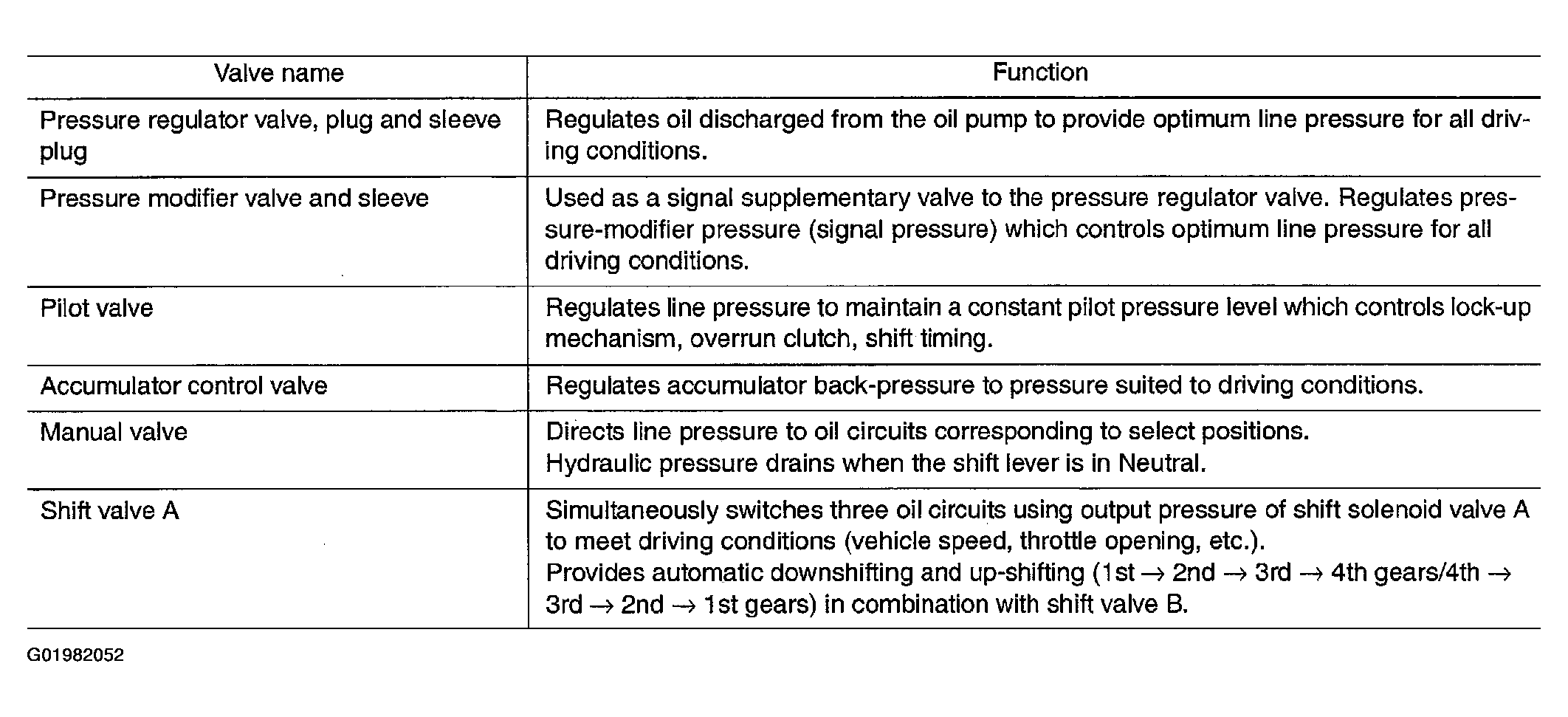

Fig 1: Function Of Control Valves Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

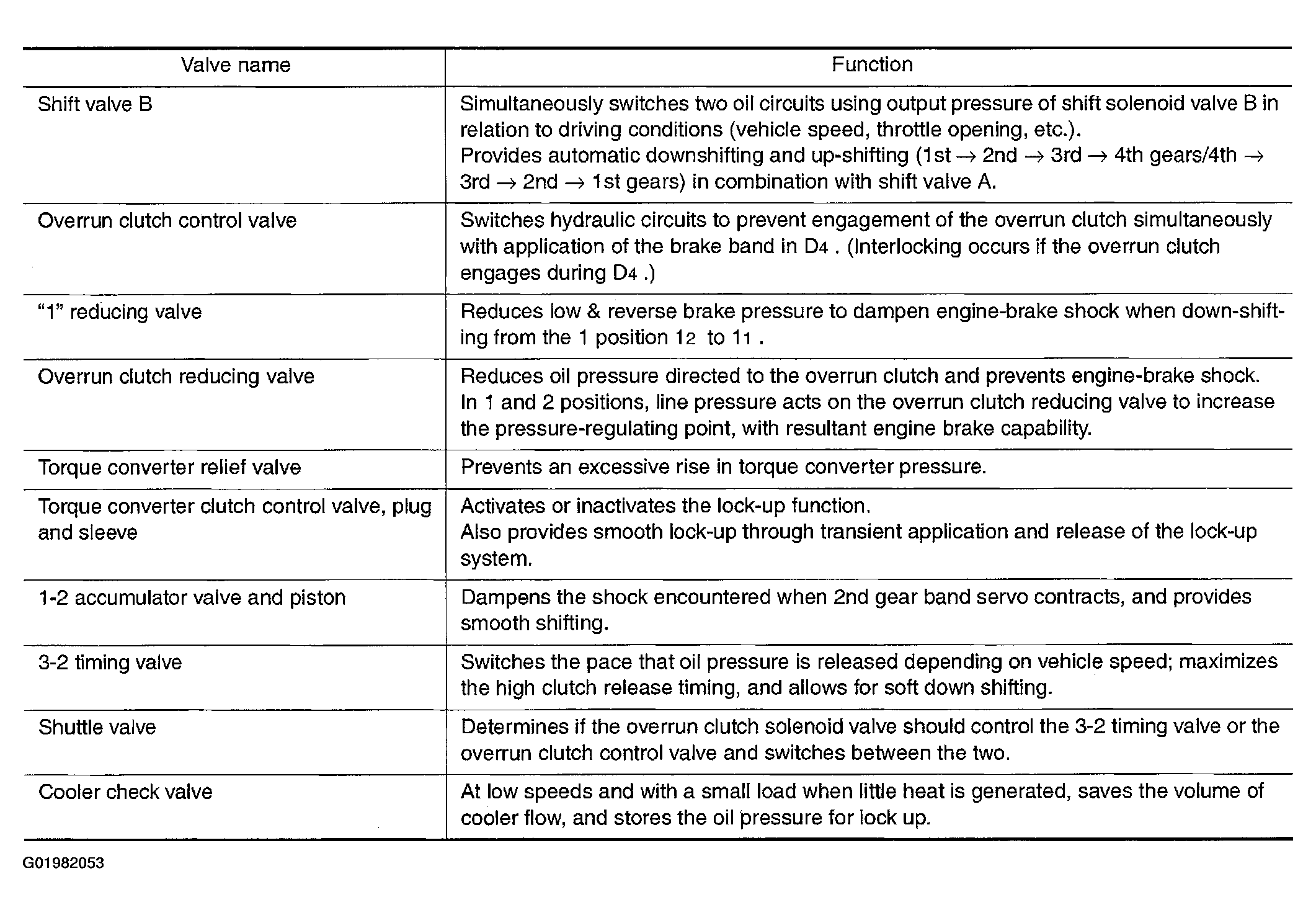

Fig 2: Function Of Control Valves Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
