Drive Cycle Pattern No. 13
Drive Cycle Pattern No. 13

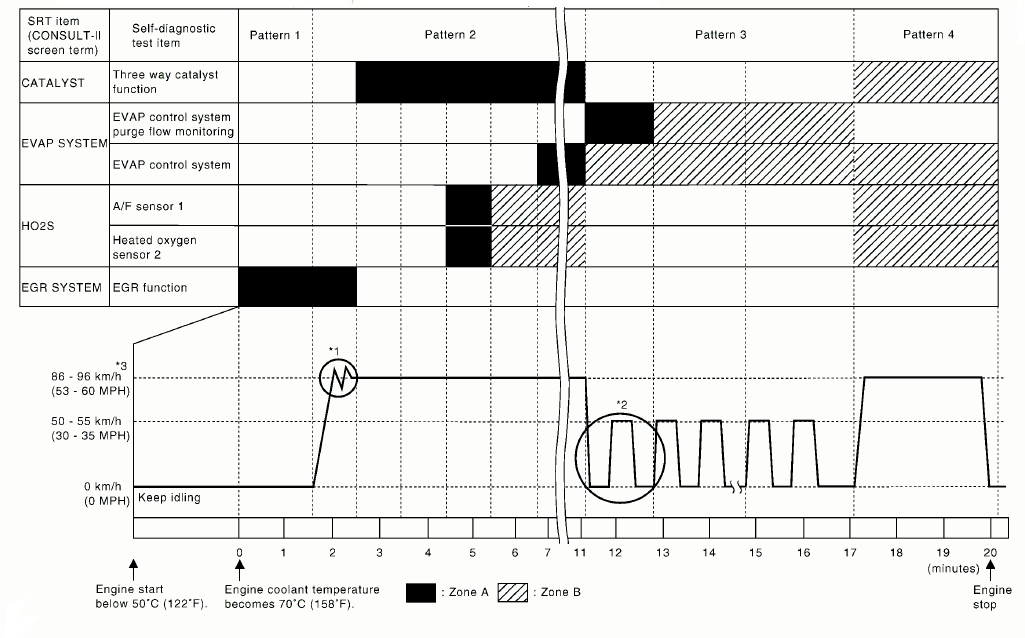

Fig 1: Drive Cycle Pattern No. 13

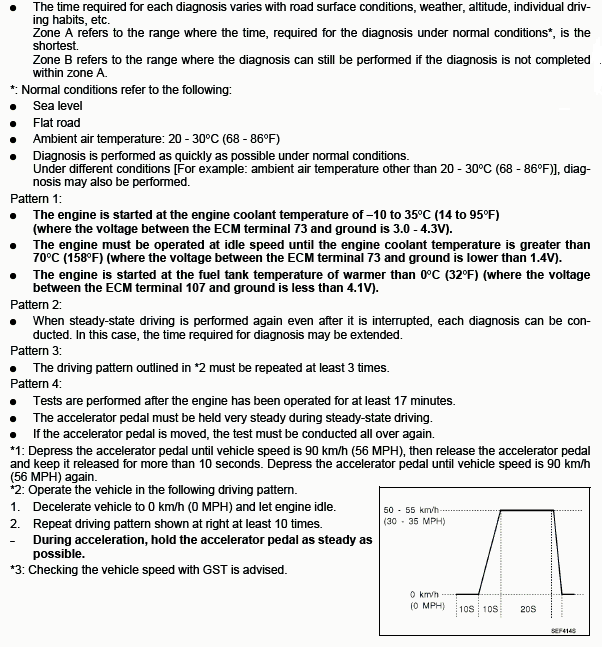

Fig 2: Drive Cycle Legend No. 13
