Exploded View With Torque Specifications

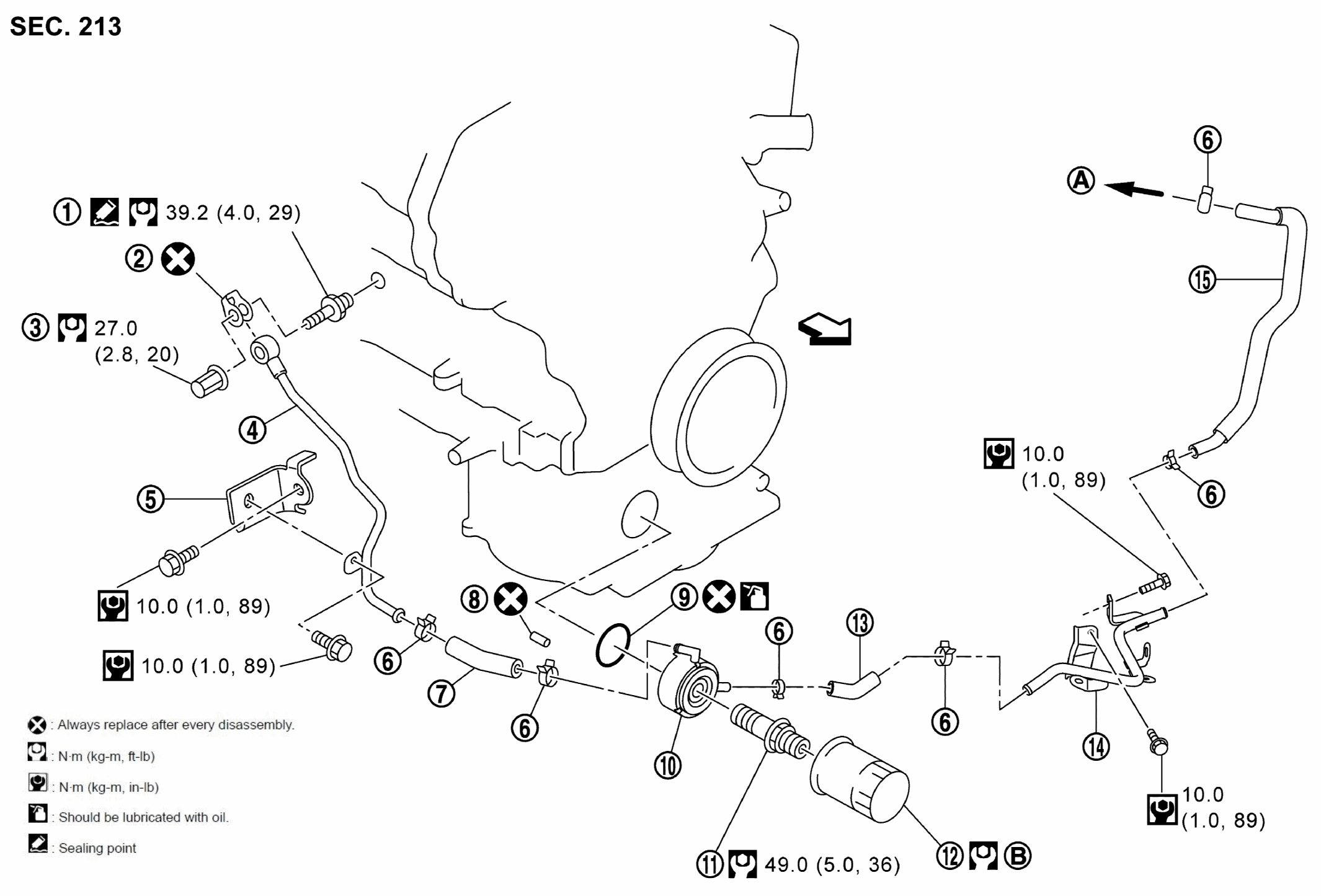

Fig 1: Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Connector bolt	2.	Copper gasket	3.	Water drain plug
4.	Water pipe	5.	Bracket	6.	Clamp
7.	Water hose	8.	Relief valve	9.	O - ring
10.	Oil cooler	11.	Connector bolt	12.	Oil filter
13.	Water hose	14.	Water pipe	15.	Water hose
A.	To water connector	B.	Comply with the assembly procedure when tightening. Refer to REMOVAL AND INSTALLATION
	: Engine front
: Always replace after every disassembly.
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Should be lubricated with oil.
: Sealing point
