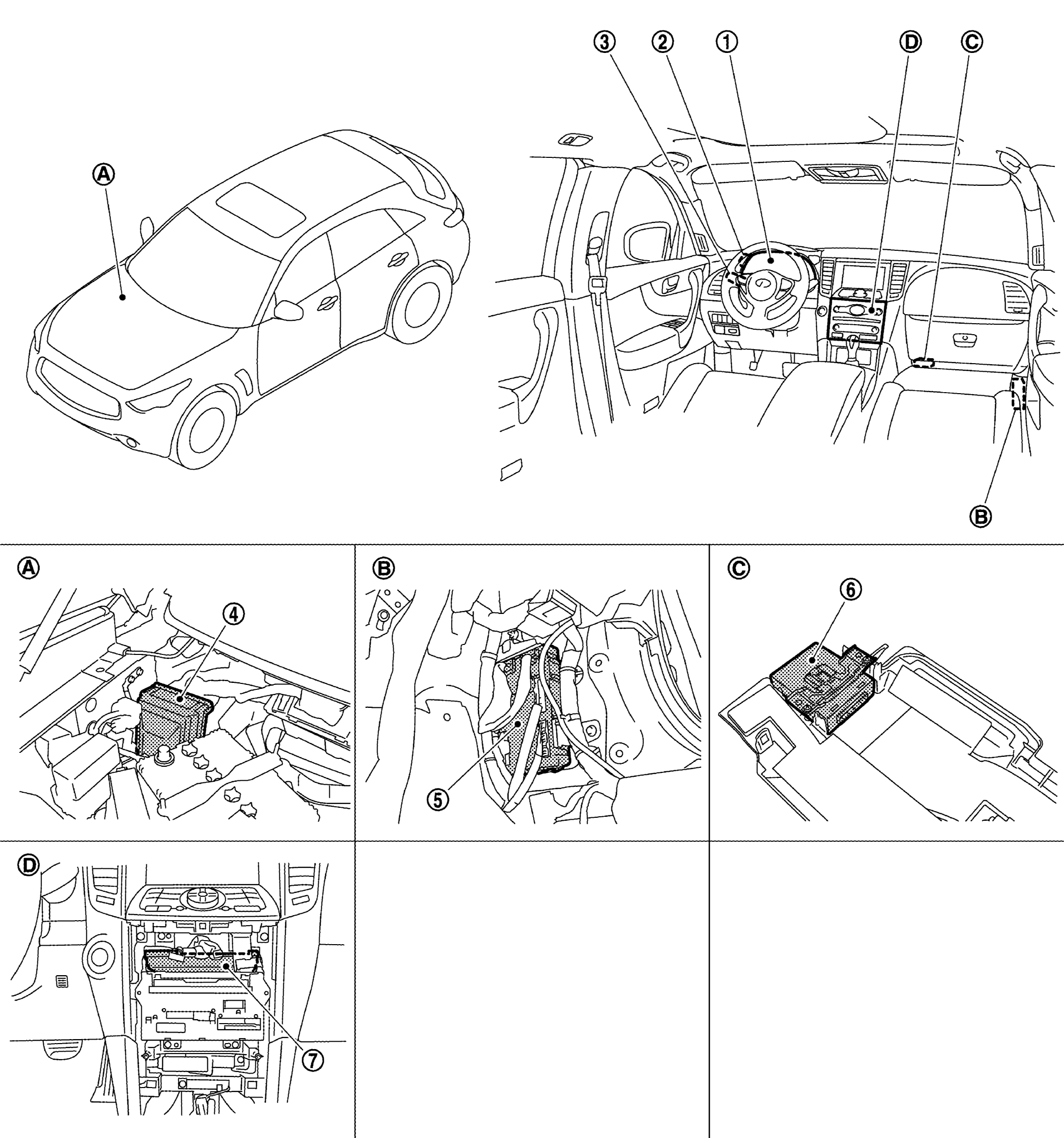

Component Location
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Combination meter |
2. |
Illumination control switch |
3. |
Combination switch |
| 4. |
IPDM E/R |
5. |
BCM |
6. |
Total illumination control unit |
| 7. |
Unified meter and A/C amp. |
|
|
|
|
| A. |
Engine room dash panel (RH) |
B. |
Dash side lower (passenger side) |
C. |
Instrument lower cover LH |
| D. |
Behind the cluster lid C |
|
|
|
|
