RF Wheel Speed Sensor Connector End View

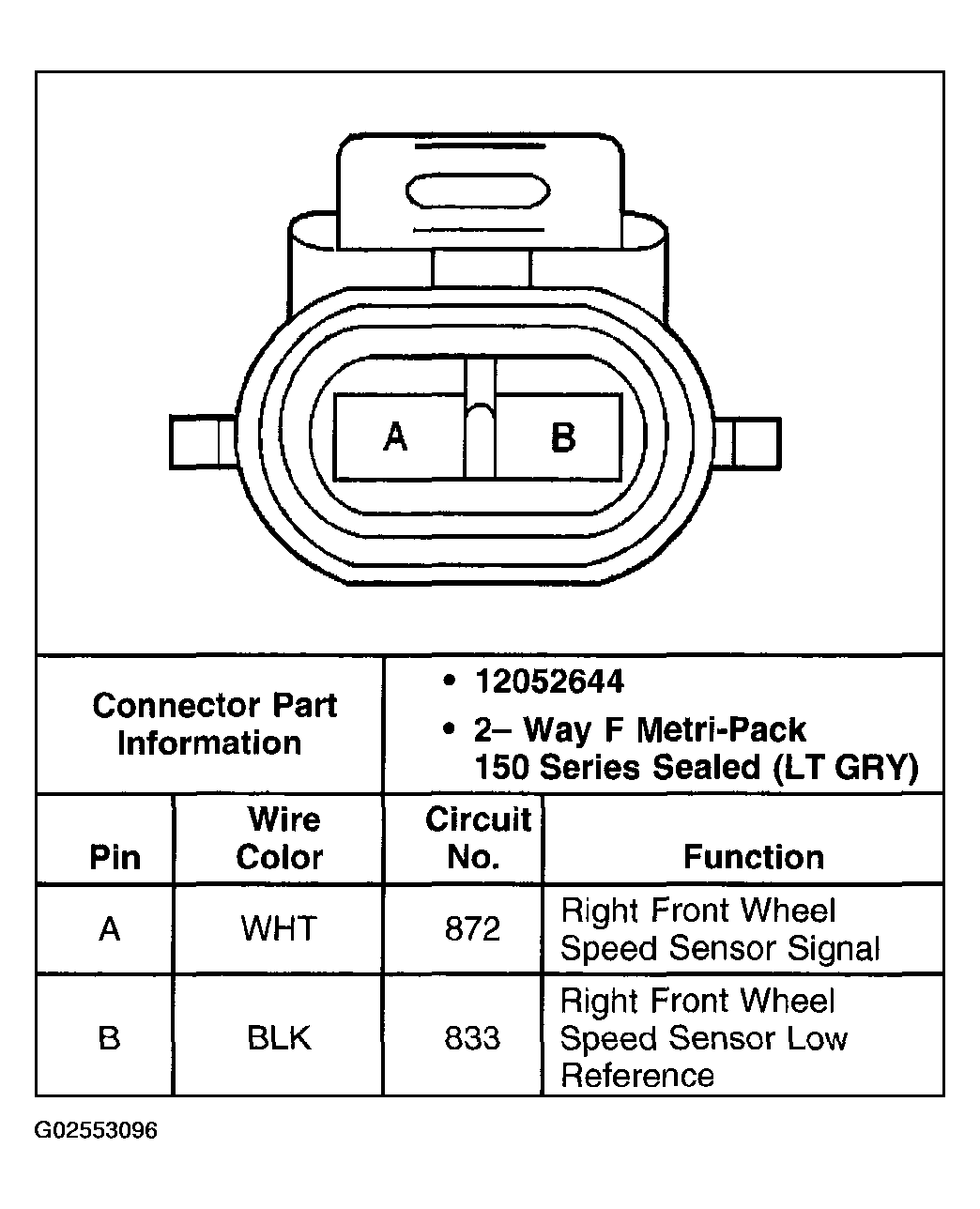

Fig 1: RF Wheel Speed Sensor Connector End View
G02553096Courtesy of GENERAL MOTORS CORP.
