Installation Procedure

  1. Install the heads up display module.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts that secure the heads up display module to the IP.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Connect the electrical connectors.
  4. Install the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper (Aztek)  or Trim Pad Replacement - Instrument Panel (I/P) Upper (Rendezvous) .

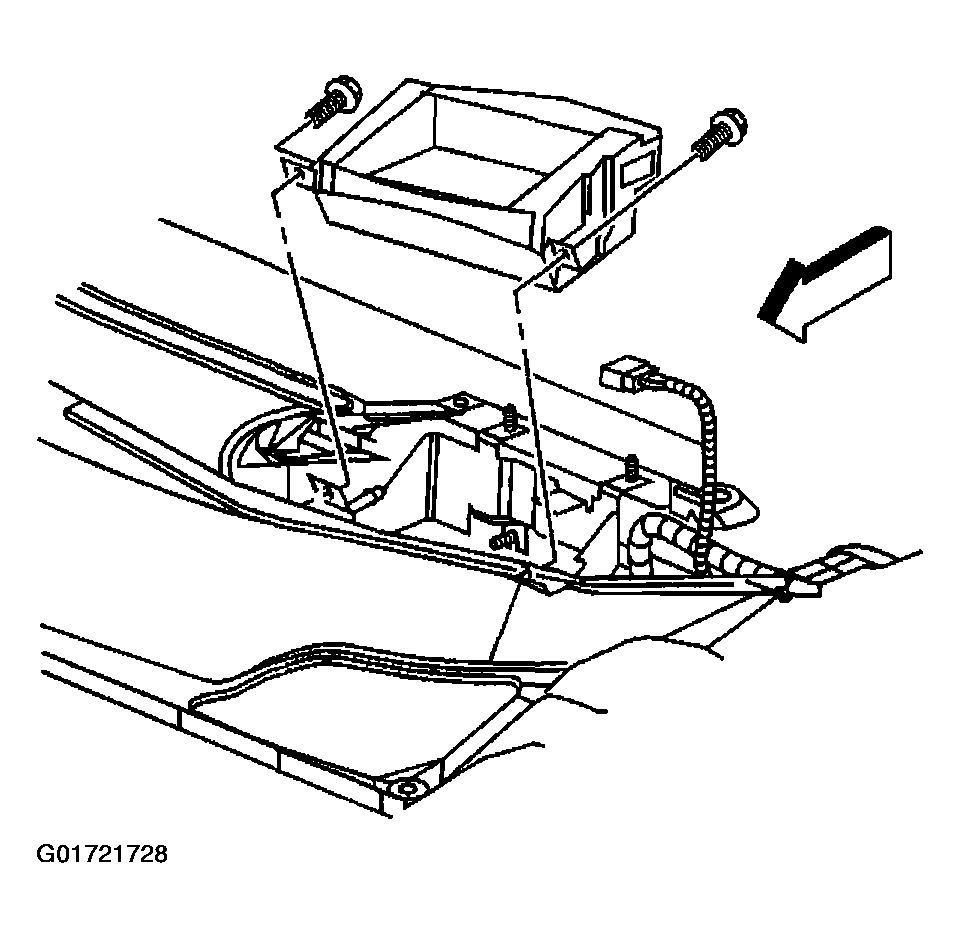

    Fig 1: Installing Heads Up Display Module, Electrical Connectors, And Bolts
    G01721728Courtesy of GENERAL MOTORS CORP.
