Removal Procedure

WARNING: Refer to Safety Glasses Warning .

WARNING: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheel. Refer to Tire and Wheel Removal and Installation .

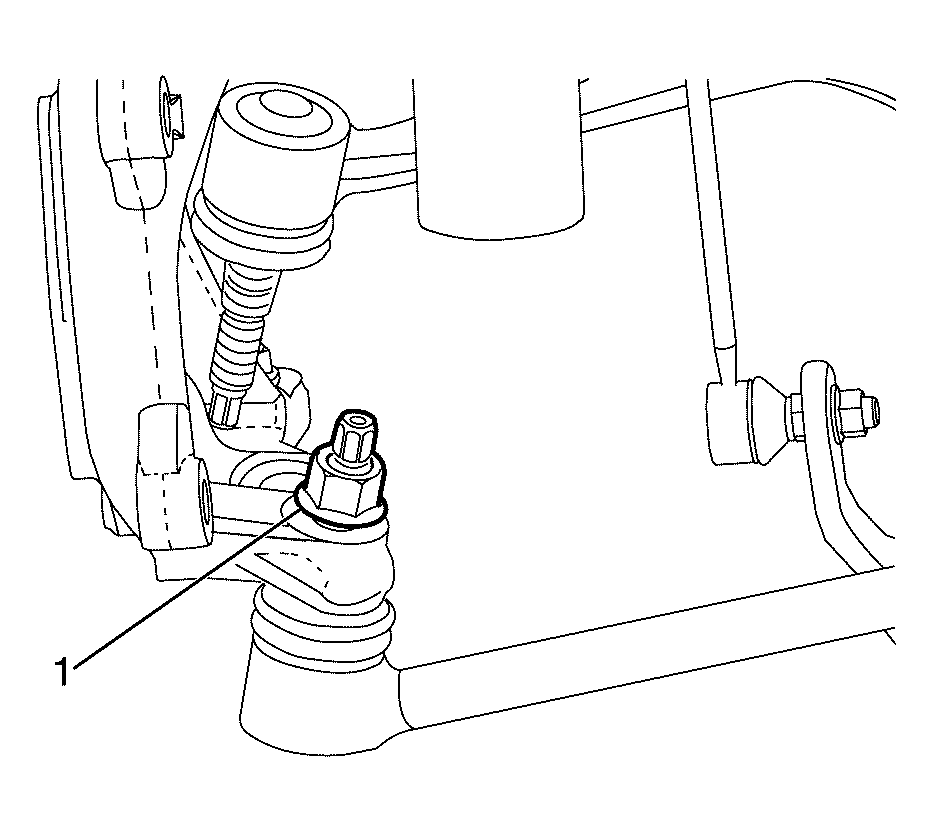

Fig 1: Identifying Control Arm To Steering Knuckle Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Loosen the control arm to steering knuckle retaining nut (1) about two turns.

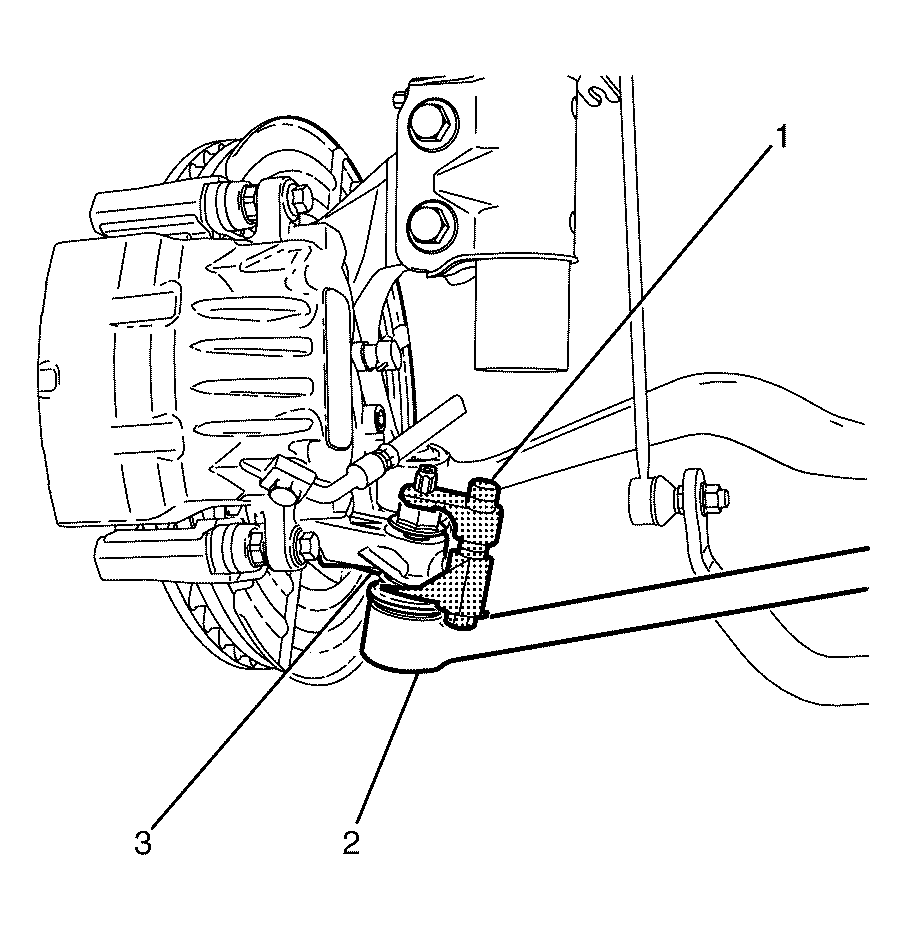

Fig 2: View Of J-42188-B, Caster Arm & Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

Using J-42188-B (1) disconnect the control arm (2) from the steering knuckle (3). See Special Tools .

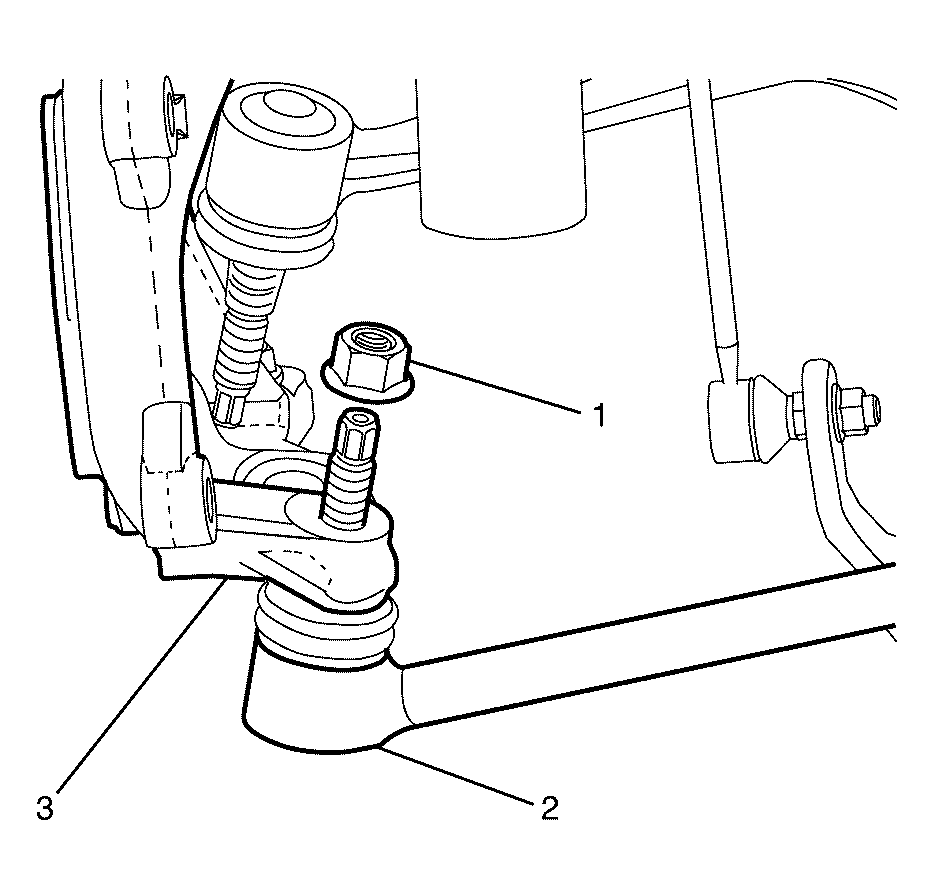

Fig 3: View Of Control Arm & Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

Remove and discard the control arm to steering knuckle retaining nut (1).
Separate the control arm (2) from the steering knuckle (3).

Fig 4: Identifying Control Arm To Subframe Retaining Bolt

Courtesy of GENERAL MOTORS CORP.

Remove and discard the control arm to subframe retaining bolt (1).
Remove the front control arm (3) from the subframe (2).
