4 cyl.

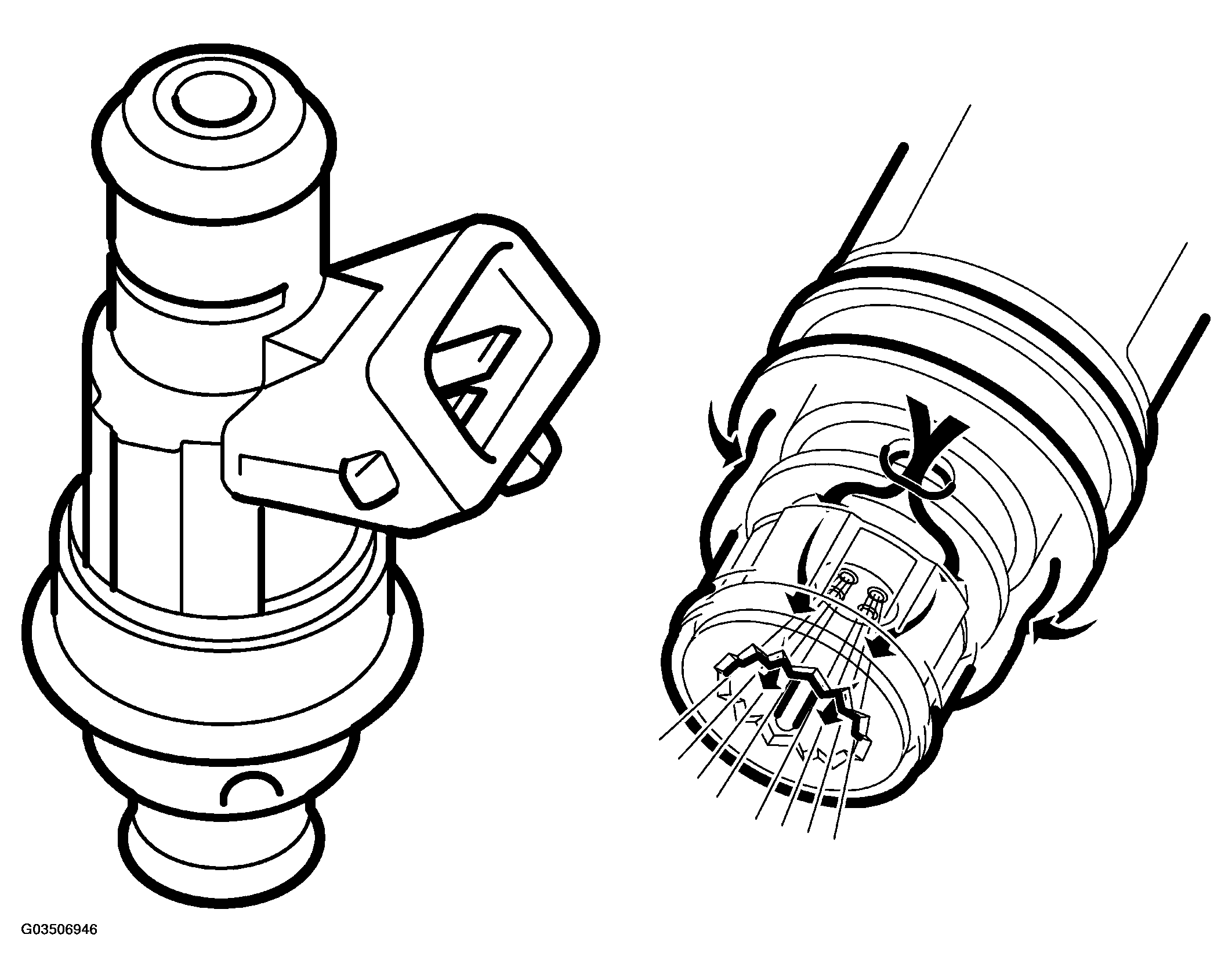

Fig 1: Identifying Injectors

G03506946

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INJECTORS TECHNICAL DATA

Flow capacity	ml/30s	76 +/- 7
mum permissible difference between injectors.	ml	14
